Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Electro-Films (EFI) / Vishay
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

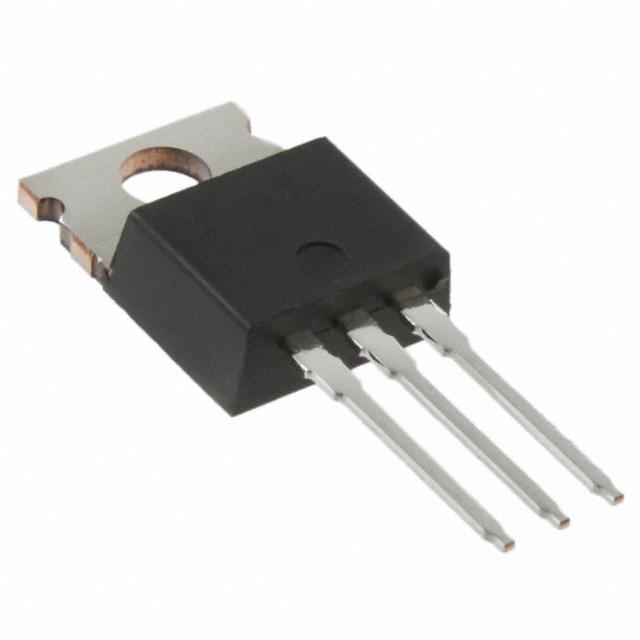

| Part Number: | IRF1405ZTRR |
| Description: | MOSFET N-CH 55V 75A TO-220AB |
| Lead Free Status / RoHS Status: | |
| Gate Charge (Qg) (Max) @ Vgs | 180nC @ 10V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Packaging | Tape & Reel (TR) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55V |
| FET Type | N-Channel |
| Package / Case | TO-220-3 |
| Power Dissipation (Max) | 230W (Tc) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Detailed Description | N-Channel 55V 75A (Tc) 230W (Tc) Through Hole TO-220AB |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 4780pF @ 25V |
| Rds On (Max) @ Id, Vgs | 4.9 mOhm @ 75A, 10V |
| Supplier Device Package | TO-220AB |
| Vgs (Max) | ±20V |
| Meta Part Number | IRF1405ZTRR-ND |
| Mounting Type | Through Hole |
| Series | - |
Data sheet: Work in prgress, stay tuned!
