| TYPE | DESCRIPTION |
| Part Number: | IPS031 |
| Description: | IC MOSFET PWR SW SGL 12A TO220-3 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Features | - |

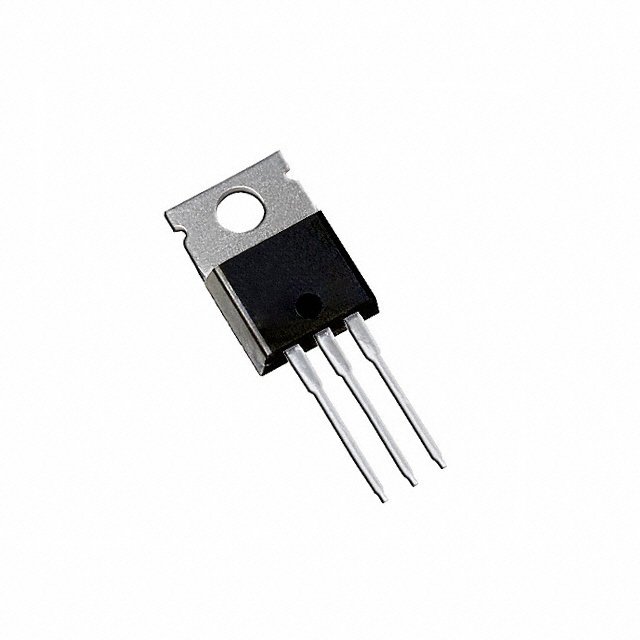

| Package / Case | TO-220-3 |
| Base Part Number | IPS031 |
| Output Configuration | Low Side |
| Meta Part Number | IPS031-ND |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Switch Type | General Purpose |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Series | - |
| Current - Output (Max) | 3.1A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Other Names | *IPS031 "######"SP001514334 |
| Interface | On/Off |
| Output Type | N-Channel |
| Supplier Device Package | TO-220AB |
| Voltage - Load | 35V (Max) |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Input Type | Non-Inverting |
| Rds On (Typ) | 45 mOhm |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Packaging | Tube |
Data sheet: Work in prgress, stay tuned!
