Category
Transistors - Bipolar (BJT) - Single
Manufacturer
Diodes Incorporated
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

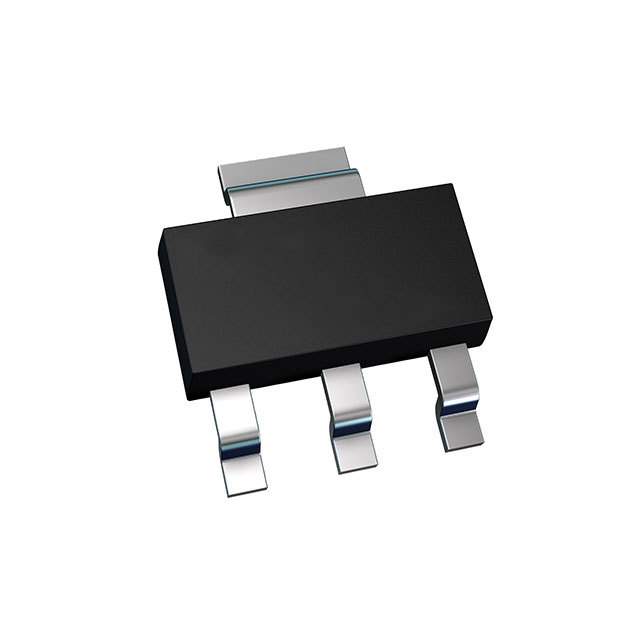

| Part Number: | FZT600TA |
| Description: | TRANS NPN DARL 140V 2A SOT223 |
| Lead Free Status / RoHS Status: | |
| Other Names | FZT600TR UFZT600TA |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-4, TO-261AA |
| Series | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Base Part Number | FZT600 |
| Current - Collector (Ic) (Max) | 2A |
| Power - Max | 2W |
| Mounting Type | Surface Mount |
| Detailed Description | Bipolar (BJT) Transistor NPN - Darlington 140V 2A 250MHz 2W Surface Mount SOT-223 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Current - Collector Cutoff (Max) | 10µA |
| Vce Saturation (Max) @ Ib, Ic | 1.2V @ 10mA, 1A |
| Frequency - Transition | 250MHz |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 2000 @ 500mA, 10V |
| Supplier Device Package | SOT-223 |
| Meta Part Number | FZT600TR-ND |
| Voltage - Collector Emitter Breakdown (Max) | 140V |
| Transistor Type | NPN - Darlington |
| Operating Temperature | -55°C ~ 150°C (TJ) |
Data sheet: Work in prgress, stay tuned!
