Category
PMIC - AC DC Converters, Offline Switchers
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

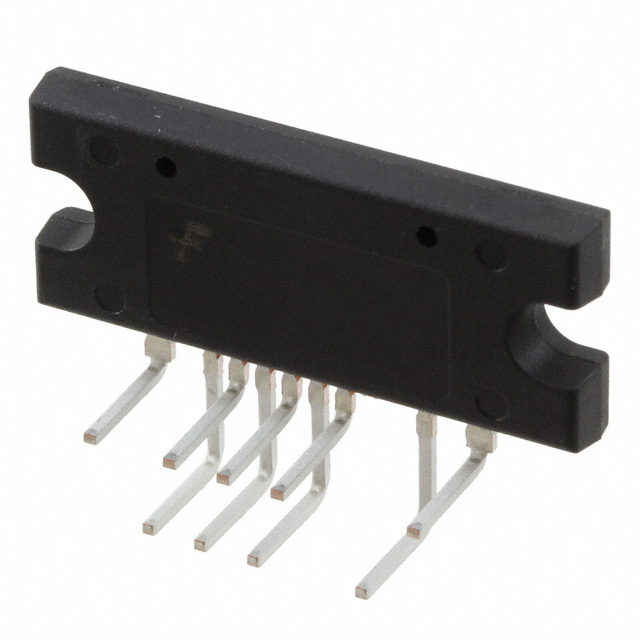

| Part Number: | FSFR1800XSL |
| Description: | IC FPS PWR SWITCH 260W 9-SIPL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Mounting Type | Through Hole |
| Topology | Half-Bridge |
| Frequency - Switching | Up to 300kHz |
| Internal Switch(s) | Yes |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Power (Watts) | 260W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Manufacturer Standard Lead Time | 2 Weeks |
| Voltage - Start Up | 12.5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Output Isolation | Isolated |
| Duty Cycle | 50% |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Supplier Device Package | 9-SIP (L forming) |
| Series | FSFR-XS |
| Control Features | Frequency Control |
| Base Part Number | FSFR1800 |
| Packaging | Tube |
| Voltage - Supply (Vcc/Vdd) | 10 V ~ 25 V |
| Meta Part Number | FSFR1800XSL-ND |
| Voltage - Breakdown | 500V |
| Package / Case | 10-SIP Module, 9 Leads, Formed Leads |
| Detailed Description | Converter Offline Half-Bridge Topology Up to 300kHz 9-SIP (L forming) |
Data sheet: Work in prgress, stay tuned!
