Category
Transistors - FETs, MOSFETs - Single
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

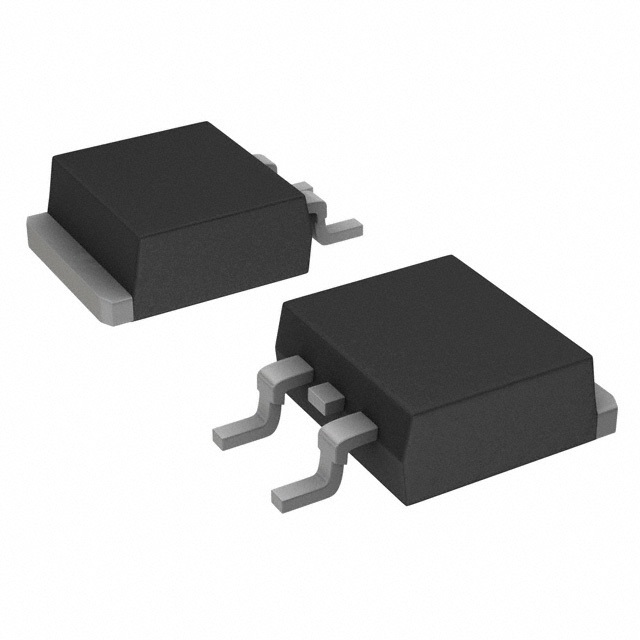

| Part Number: | FQB27P06TM |
| Description: | MOSFET P-CH 60V 27A D2PAK |
| Lead Free Status / RoHS Status: | |
| Input Capacitance (Ciss) (Max) @ Vds | 1400pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 43nC @ 10V |
| Series | QFET® |
| FET Type | P-Channel |
| Rds On (Max) @ Id, Vgs | 70 mOhm @ 13.5A, 10V |
| Supplier Device Package | D²PAK (TO-263AB) |
| Drain to Source Voltage (Vdss) | 60V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Power Dissipation (Max) | 3.75W (Ta), 120W (Tc) |
| Mounting Type | Surface Mount |
| Vgs (Max) | ±25V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Meta Part Number | FQB27P06TMTR-ND |
| FET Feature | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Technology | MOSFET (Metal Oxide) |
| Other Names | FQB27P06TM-ND FQB27P06TMTR |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Detailed Description | P-Channel 60V 27A (Tc) 3.75W (Ta), 120W (Tc) Surface Mount D²PAK (TO-263AB) |
| Current - Continuous Drain (Id) @ 25°C | 27A (Tc) |
Data sheet: Work in prgress, stay tuned!
