Category
Transistors - FETs, MOSFETs - Single
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

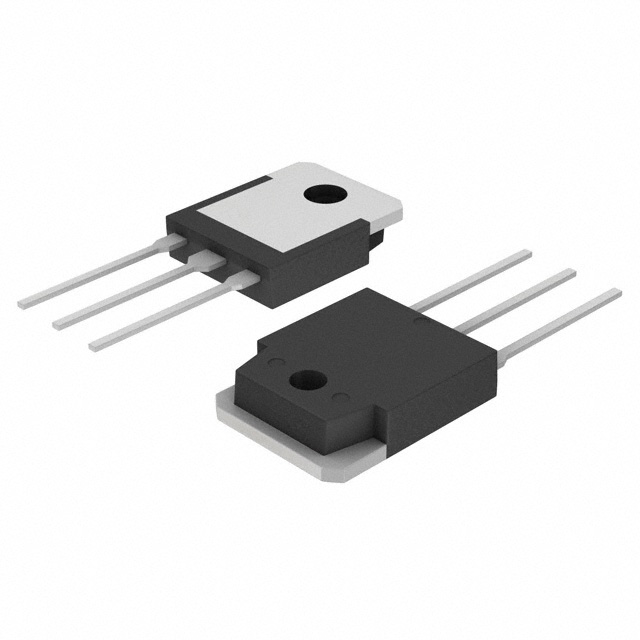

| Part Number: | FQA40N25 |
| Description: | MOSFET N-CH 250V 40A TO-3P |
| Lead Free Status / RoHS Status: | |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Capacitance (Ciss) (Max) @ Vds | 4000pF @ 25V |
| FET Type | N-Channel |
| Series | QFET® |
| Manufacturer Standard Lead Time | 4 Weeks |
| Meta Part Number | FQA40N25FS-ND |
| FET Feature | - |
| Mounting Type | Through Hole |
| Power Dissipation (Max) | 280W (Tc) |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Vgs (Max) | ±30V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Supplier Device Package | TO-3PN |
| Detailed Description | N-Channel 250V 40A (Tc) 280W (Tc) Through Hole TO-3PN |
| Other Names | FQA40N25-ND FQA40N25FS |
| Rds On (Max) @ Id, Vgs | 70 mOhm @ 20A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 110nC @ 10V |
| Drain to Source Voltage (Vdss) | 250V |
| Packaging | Tube |
| Package / Case | TO-3P-3, SC-65-3 |
| Technology | MOSFET (Metal Oxide) |
Data sheet: Work in prgress, stay tuned!
