Category
Transistors - FETs, MOSFETs - Single
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

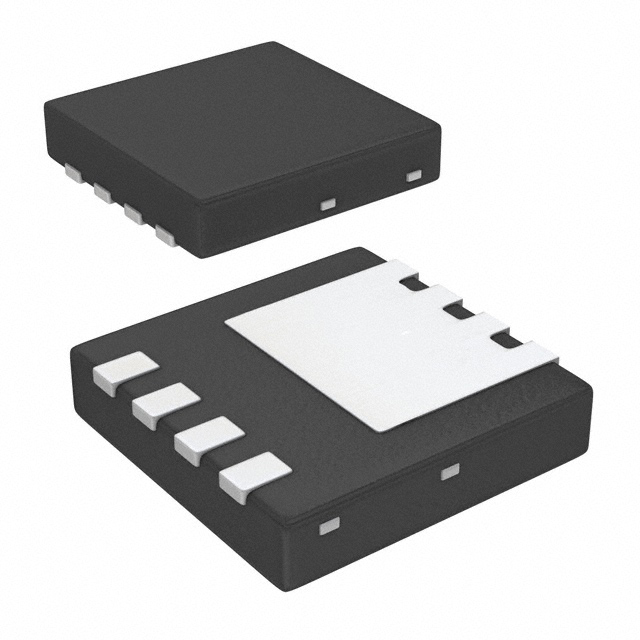

| Part Number: | FDMC8010 |
| Description: | MOSFET N-CH 30V 8-PQFN |
| Lead Free Status / RoHS Status: | |
| Rds On (Max) @ Id, Vgs | 1.3 mOhm @ 30A, 10V |
| Drain to Source Voltage (Vdss) | 30V |
| FET Feature | - |
| Gate Charge (Qg) (Max) @ Vgs | 94nC @ 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Mounting Type | Surface Mount |
| Power Dissipation (Max) | 2.4W (Ta), 54W (Tc) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Vgs (Max) | ±20V |
| Other Names | FDMC8010-ND FDMC8010TR |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta), 75A (Tc) |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Detailed Description | N-Channel 30V 30A (Ta), 75A (Tc) 2.4W (Ta), 54W (Tc) Surface Mount Power33 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Series | PowerTrench® |
| Supplier Device Package | Power33 |
| Meta Part Number | FDMC8010TR-ND |
| Input Capacitance (Ciss) (Max) @ Vds | 5860pF @ 15V |
Data sheet: Work in prgress, stay tuned!
