| TYPE | DESCRIPTION |

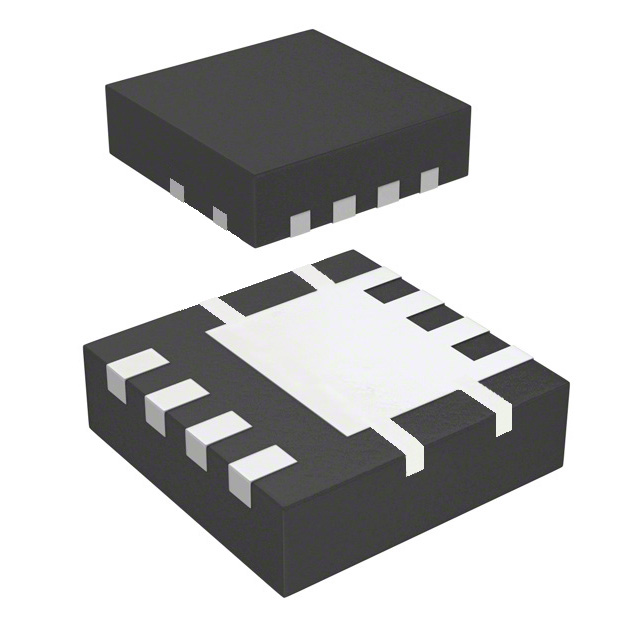

| Part Number: | FDMC2523P |
| Description: | MOSFET P-CH 150V 3A MLP 3.3SQ |
| Lead Free Status / RoHS Status: | |
| Meta Part Number | FDMC2523PDKR-ND |
| Other Names | FDMC2523PDKR |
| Technology | MOSFET (Metal Oxide) |
| Gate Charge (Qg) (Max) @ Vgs | 9nC @ 10V |
| Power Dissipation (Max) | 42W (Tc) |
| FET Type | P-Channel |
| Packaging | Digi-Reel® |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 150V |
| Rds On (Max) @ Id, Vgs | 1.5 Ohm @ 1.5A, 10V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Supplier Device Package | 8-MLP (3.3x3.3) |
| Detailed Description | P-Channel 150V 3A (Tc) 42W (Tc) Surface Mount 8-MLP (3.3x3.3) |
| Series | QFET® |
| Input Capacitance (Ciss) (Max) @ Vds | 270pF @ 25V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Current - Continuous Drain (Id) @ 25°C | 3A (Tc) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| FET Feature | - |
