Category
Embedded - Microcontrollers
Manufacturer
Energy Micro (Silicon Labs)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

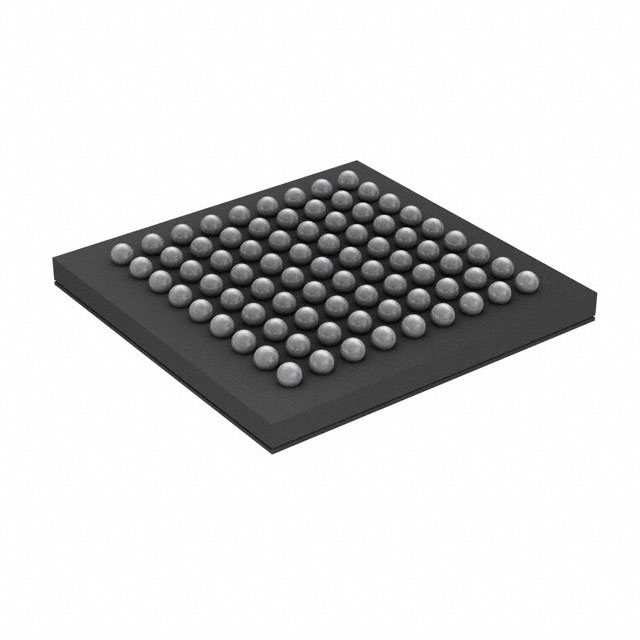

| Part Number: | EFM32WG360F64G-A-CSP81 |
| Description: | IC MCU 32BIT 64KB FLASH 81CSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Number of I/O | 65 |
| Core Size | 32-Bit |
| Program Memory Size | 64KB (64K x 8) |
| Supplier Device Package | 81-CSP (4.35x4.27) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks |
| Meta Part Number | 336-3082-ND |
| Packaging | Strip |
| RAM Size | 32K x 8 |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Detailed Description | ARM® Cortex®-M4 Wonder Gecko Microcontroller IC 32-Bit 48MHz 64KB (64K x 8) FLASH 81-CSP (4.35x4.27) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply (Vcc/Vdd) | 1.98 V ~ 3.8 V |
| Series | Wonder Gecko |
| Data Converters | A/D 8x12b, D/A 1x12b |
| Speed | 48MHz |
| Program Memory Type | FLASH |
| Package / Case | 81-UFBGA, CSPBGA |
| Connectivity | I²C, IrDA, SmartCard, SPI, UART/USART, USB OTG |
| Oscillator Type | Internal |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Other Names | 336-3082 |
| Core Processor | ARM® Cortex®-M4 |
| EEPROM Size | - |
Data sheet: Work in prgress, stay tuned!
