| TYPE | DESCRIPTION |

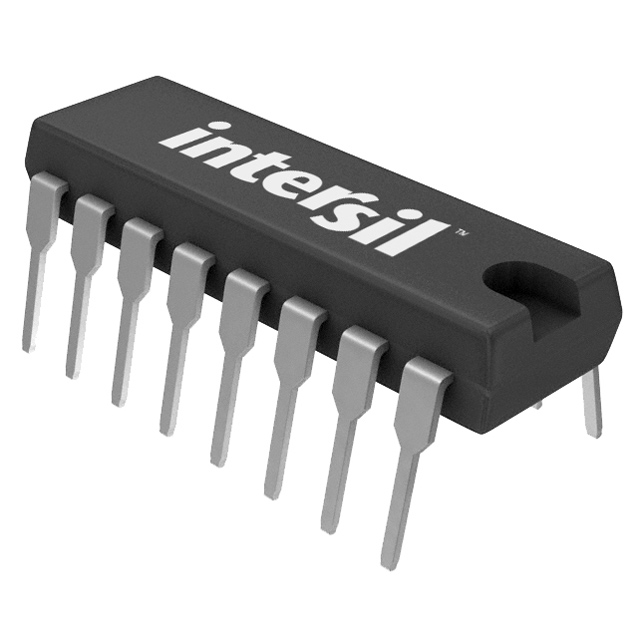

| Part Number: | DG409DJ |
| Description: | IC MULTIPLEXER DUAL 4X1 16DIP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Package / Case | 16-DIP (0.300, 7.62mm) |
| Crosstalk | - |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 14pF |
| Detailed Description | 2 Circuit IC Switch 4:1 100 Ohm 16-PDIP |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Charge Injection | 20pC |
| -3db Bandwidth | - |
| Meta Part Number | DG409DJ-ND |
| Channel-to-Channel Matching (ΔRon) | 15 Ohm (Max) |
| Voltage - Supply, Dual (V±) | ±5 V ~ 20 V |
| On-State Resistance (Max) | 100 Ohm |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Packaging | Tube |
| Switch Circuit | SP4T |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 16-PDIP |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Base Part Number | DG409 |
| Voltage - Supply, Single (V+) | 5 V ~ 34 V |
| Series | - |
| Number of Circuits | 2 |
Data sheet: Work in prgress, stay tuned!
