| TYPE | DESCRIPTION |

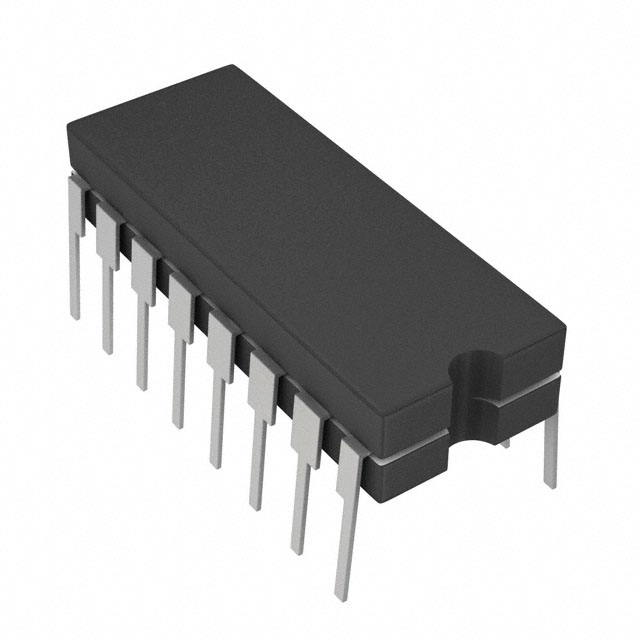

| Part Number: | DG408AK/883B |
| Description: | IC MUX 8:1 100 OHM 16DIP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Charge Injection | 2pC |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Package / Case | 16-CDIP (0.300, 7.62mm) |
| Voltage - Supply, Single (V+) | 5 V ~ 30 V |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Number of Circuits | 1 |
| Voltage - Supply, Dual (V±) | ±5 V ~ 20 V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| On-State Resistance (Max) | 100 Ohm |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 26pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Series | - |
| Packaging | Tube |
| Detailed Description | 1 Circuit IC Switch 8:1 100 Ohm 16-CERDIP |
| Meta Part Number | DG408AK/883B-ND |
| Supplier Device Package | 16-CERDIP |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Crosstalk | -92dB @ 100kHz |
| -3db Bandwidth | - |
| Channel-to-Channel Matching (ΔRon) | 1.5 Ohm |
Data sheet: Work in prgress, stay tuned!
