Category
Diodes - Rectifiers - Single
Manufacturer
Wolfspeed
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

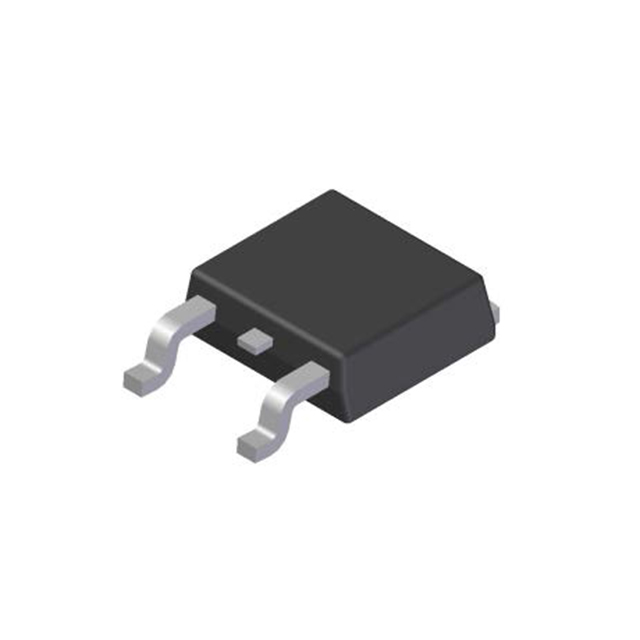

| Part Number: | C4D02120E-TR |
| Description: | DIODE SCHOTTKY 1.2KV 9A TO252-2 |
| Lead Free Status / RoHS Status: | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Voltage - DC Reverse (Vr) (Max) | 1200V |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0ns |
| Manufacturer Standard Lead Time | 52 Weeks |
| Capacitance @ Vr, F | 167pF @ 0V, 1MHz |
| Meta Part Number | C4D02120E-TR-ND |
| Voltage - Forward (Vf) (Max) @ If | 1.8V @ 2A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Current - Average Rectified (Io) | 10A (DC) |
| Series | Z-Rec® |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252-2 |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Detailed Description | Diode Silicon Carbide Schottky 1200V 10A (DC) Surface Mount TO-252-2 |
| Diode Type | Silicon Carbide Schottky |
| Packaging | Tape & Reel (TR) |
| Current - Reverse Leakage @ Vr | 50µA @ 1200V |
Data sheet: Work in prgress, stay tuned!
