Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Cypress Semiconductor (Infineon Technologies)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

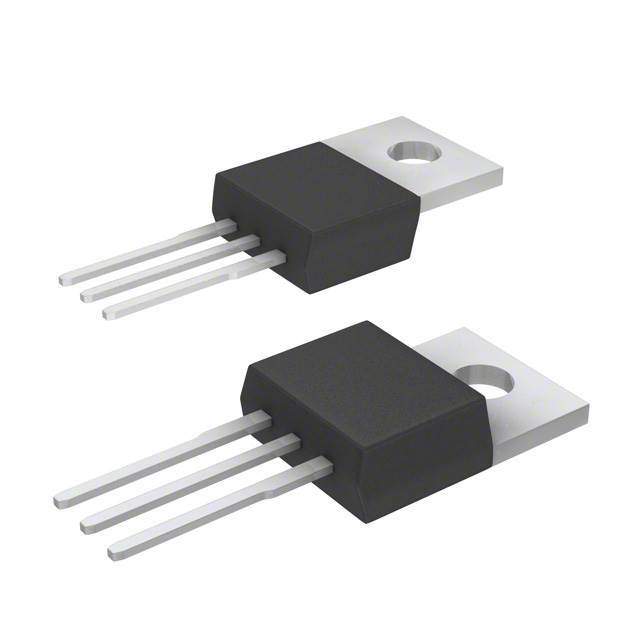

| Part Number: | BUZ31 E3046 |
| Description: | MOSFET N-CH 200V 14.5A TO262-3 |
| Lead Free Status / RoHS Status: | |
| Supplier Device Package | PG-TO-220-3 |
| FET Feature | - |
| Series | SIPMOS® |
| Mounting Type | Through Hole |
| Rds On (Max) @ Id, Vgs | 200 mOhm @ 9A, 5V |
| Drain to Source Voltage (Vdss) | 200V |
| Meta Part Number | BUZ31E3046-ND |
| Detailed Description | N-Channel 200V 14.5A (Tc) 95W (Tc) Through Hole PG-TO-220-3 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Technology | MOSFET (Metal Oxide) |
| Power Dissipation (Max) | 95W (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1120pF @ 25V |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Package / Case | TO-220-3 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Vgs (Max) | ±20V |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Current - Continuous Drain (Id) @ 25°C | 14.5A (Tc) |
| Other Names | BUZ31 E3046-ND BUZ31E3046 BUZ31E3046X BUZ31E3046XK ",SP000011344 |
Data sheet: Work in prgress, stay tuned!
