Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Cypress Semiconductor (Infineon Technologies)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

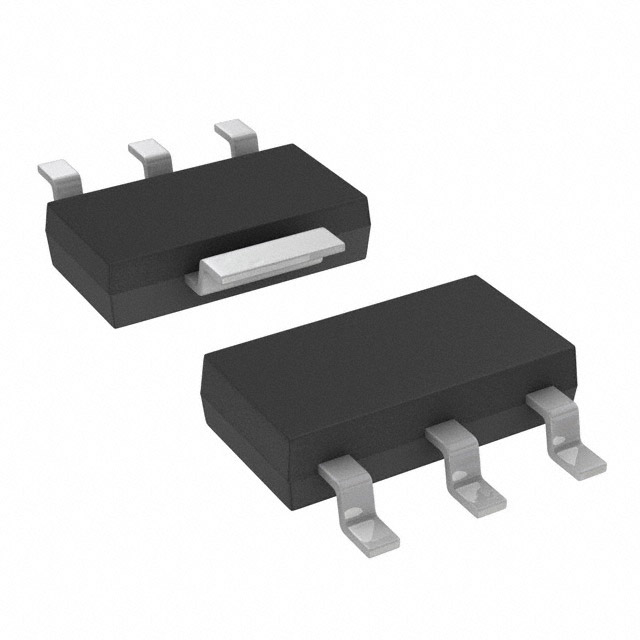

| Part Number: | BSP300H6327XUSA1 |
| Description: | MOSFET N-CH 800V 190MA SOT-223 |
| Lead Free Status / RoHS Status: | |
| Supplier Device Package | PG-SOT223-4 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Packaging | Tape & Reel (TR) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| FET Feature | - |
| Rds On (Max) @ Id, Vgs | 20 Ohm @ 190mA, 10V |
| Series | SIPMOS® |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Other Names | BSP300H6327XUSA1TR SP001058720 |
| Power Dissipation (Max) | 1.8W (Ta) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Meta Part Number | BSP300H6327XUSA1TR-ND |
| Drain to Source Voltage (Vdss) | 800V |
| Current - Continuous Drain (Id) @ 25°C | 190mA (Ta) |
| FET Type | N-Channel |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) (Max) @ Vds | 230pF @ 25V |
| Detailed Description | N-Channel 800V 190mA (Ta) 1.8W (Ta) Surface Mount PG-SOT223-4 |
| Package / Case | TO-261-4, TO-261AA |
Data sheet: Work in prgress, stay tuned!
