Category
PMIC - Power Distribution Switches, Load Drivers
Manufacturer
LAPIS Technology
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

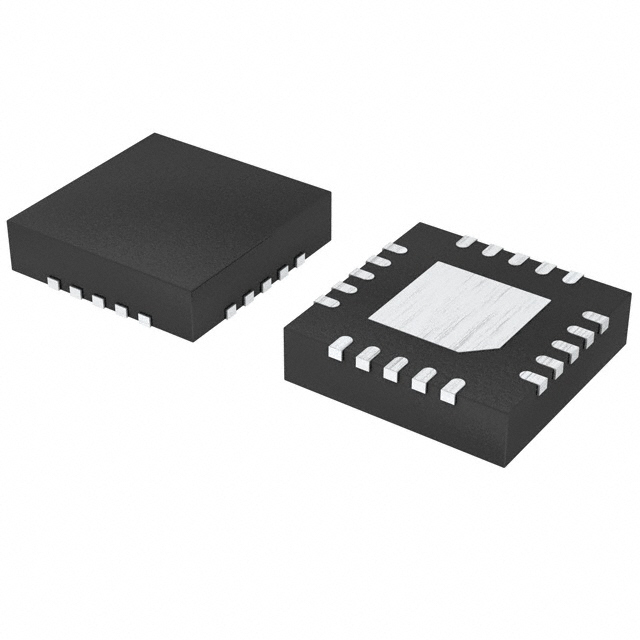

| Part Number: | BD4157MUV-E2 |
| Description: | IC POWER SWITCH EXPRESS 20VQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Meta Part Number | BD4157MUV-E2TR-ND |
| Series | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Voltage - Load | 1.5V, 3.3V |
| Rds On (Typ) | 50 mOhm, 140 mOhm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Number of Outputs | 3 |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Supplier Device Package | VQFN020V4040 |
| Output Type | N-Channel |
| Manufacturer Standard Lead Time | 12 Weeks |
| Ratio - Input:Output | 1:1 |
| Packaging | Tape & Reel (TR) |
| Current - Output (Max) | - |
| Output Configuration | High Side |
| Input Type | - |
| Features | Load Discharge |
| Interface | On/Off |
| Switch Type | ExpressCard™ Switch |
| Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO |
| Package / Case | 20-VFQFN Exposed Pad |
| Voltage - Supply (Vcc/Vdd) | - |
| Other Names | BD4157MUV-E2TR |
Data sheet: Work in prgress, stay tuned!
