Category
Transistors - Bipolar (BJT) - Single
Manufacturer
STMicroelectronics
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

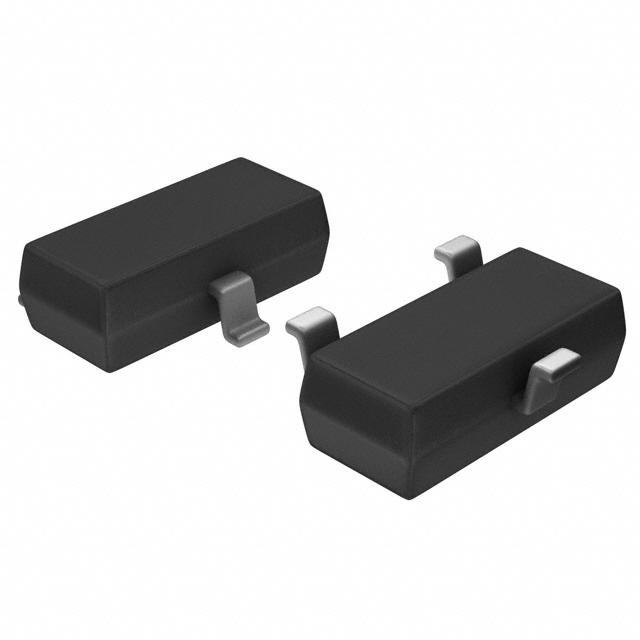

| Part Number: | BC817-40 |
| Description: | TRANS NPN 45V 0.5A SOT-23 |
| Lead Free Status / RoHS Status: | |
| Supplier Device Package | SOT-23-3 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Detailed Description | Bipolar (BJT) Transistor NPN 45V 500mA 100MHz 250mW Surface Mount SOT-23-3 |
| Other Names | 497-2531-1 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 250 @ 100mA, 1V |
| Base Part Number | BC817 |
| Series | - |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Packaging | Cut Tape (CT) |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 50mA, 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 45V |
| Transistor Type | NPN |
| Power - Max | 250mW |
| Current - Collector (Ic) (Max) | 500mA |
| Operating Temperature | 150°C (TJ) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Meta Part Number | 497-2531-1-ND |
| Frequency - Transition | 100MHz |
Data sheet: Work in prgress, stay tuned!
