Category
Diodes - Rectifiers - Single
Manufacturer
Nexperia
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

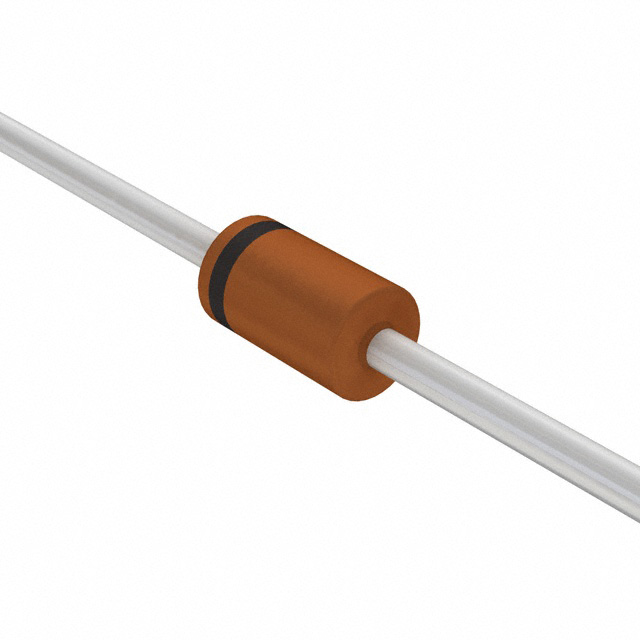

| Part Number: | BAT85,133 |
| Description: | DIODE SCHOTTKY 30V 200MA DO34 |
| Lead Free Status / RoHS Status: | |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Packaging | Tape & Box (TB) |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Diode Type | Schottky |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Through Hole |
| Current - Reverse Leakage @ Vr | 2µA @ 25V |
| Manufacturer Standard Lead Time | 6 Weeks |
| Series | - |
| Package / Case | DO-204AG, DO-34, Axial |
| Other Names | 1727-1928-3 568-11747-3 568-11747-3-ND 933624760133 BAT85 AMO BAT85 AMO-ND BAT85,133-ND |
| Meta Part Number | 1727-1928-3-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Part Number | BAT85 |
| Current - Average Rectified (Io) | 200mA (DC) |
| Supplier Device Package | DO-34 |
| Operating Temperature - Junction | 125°C (Max) |
| Detailed Description | Diode Schottky 30V 200mA (DC) Through Hole DO-34 |
| Reverse Recovery Time (trr) | 4ns |
| Voltage - Forward (Vf) (Max) @ If | 800mV @ 100mA |
Data sheet: Work in prgress, stay tuned!
