Category
Diodes - Rectifiers - Arrays
Manufacturer
Diodes Incorporated
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

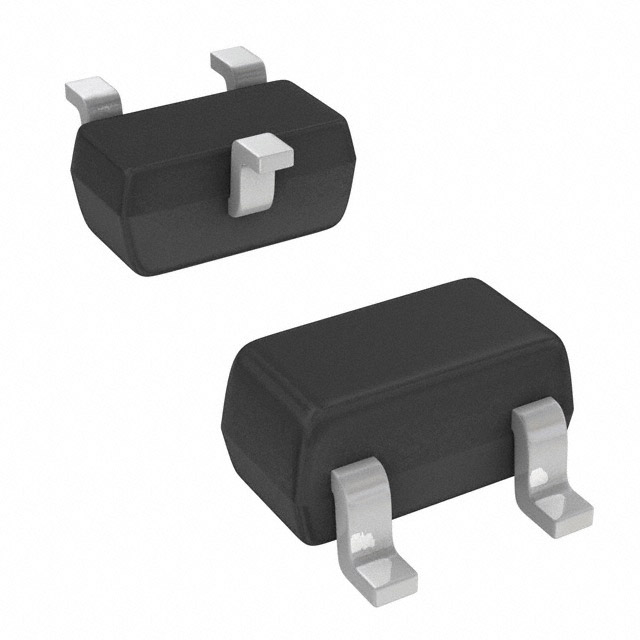

| Part Number: | BAS40-05T-7-F |
| Description: | DIODE ARRAY SCHOTTKY 40V SOT523 |
| Lead Free Status / RoHS Status: | |
| Diode Type | Schottky |
| Other Names | BAS40-05T-FDITR BAS40-05T-FDITR-ND BAS40-05TFDITR BAS4005T7F |
| Diode Configuration | 1 Pair Common Cathode |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 40mA |
| Supplier Device Package | SOT-523 |
| Meta Part Number | BAS40-05TFDITR-ND |
| Base Part Number | BAS40-05 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Package / Case | SOT-523 |
| Current - Reverse Leakage @ Vr | 200nA @ 30V |
| Reverse Recovery Time (trr) | 5ns |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Detailed Description | Diode Array 1 Pair Common Cathode Schottky 40V 200mA (DC) Surface Mount SOT-523 |
| Series | - |
Data sheet: Work in prgress, stay tuned!
