Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Cypress Semiconductor (Infineon Technologies)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

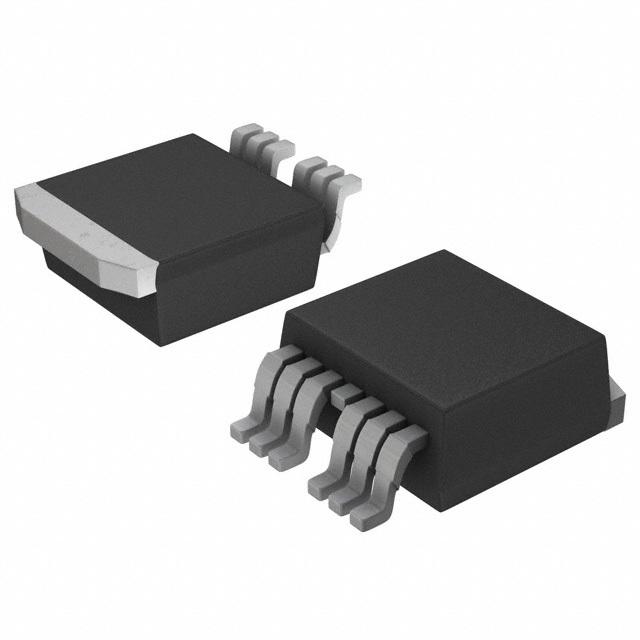

| Part Number: | AUIRFS8409-7P |
| Description: | MOSFET N-CH 40V 240A D2PAK-7 |
| Lead Free Status / RoHS Status: | |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Capacitance (Ciss) (Max) @ Vds | 13975pF @ 25V |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Base Part Number | IRFS8409 |
| Meta Part Number | IRAUIRFS8409-7P-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Vgs (Max) | ±20V |
| Series | HEXFET® |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3.9V @ 250µA |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Packaging | Tube |
| Gate Charge (Qg) (Max) @ Vgs | 460nC @ 10V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Rds On (Max) @ Id, Vgs | 0.75 mOhm @ 100A, 10V |
| Drain to Source Voltage (Vdss) | 40V |
| Other Names | IRAUIRFS8409-7P SP001522376 |
| Supplier Device Package | D2PAK (7-Lead) |
| Power Dissipation (Max) | 375W (Tc) |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
| Detailed Description | N-Channel 40V 240A (Tc) 375W (Tc) Surface Mount D2PAK (7-Lead) |
Data sheet: Work in prgress, stay tuned!
