Category
PMIC - Voltage Regulators - Linear
Manufacturer
Diodes Incorporated
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

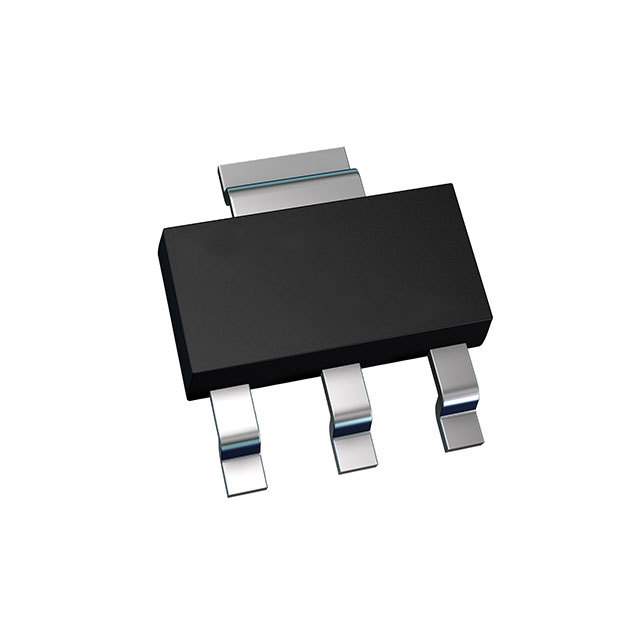

| Part Number: | AP2111H-3.3TRG1 |
| Description: | IC REG LINEAR 3.3V 600MA SOT223 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Voltage - Input (Max) | 6V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Control Features | - |
| Output Type | Fixed |
| Other Names | AP2111H-3.3TRG1DI "######"AP2111H-3.3TRG1DI-ND "######"AP2111H-3.3TRG1DITR |
| Voltage - Output (Min/Fixed) | 3.3V |
| Meta Part Number | AP2111H-3.3TRG1DITR-ND |
| Supplier Device Package | SOT-223 |
| Voltage Dropout (Max) | 0.4V @ 600mA |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of Regulators | 1 |
| Packaging | Tape & Reel (TR) |
| Voltage - Output (Max) | - |
| Manufacturer Standard Lead Time | 24 Weeks |
| Output Configuration | Positive |
| Operating Temperature | -40°C ~ 85°C |
| Current - Output | 600mA |
| Mounting Type | Surface Mount |
| PSRR | 65dB (100Hz ~ 1kHz) |
| Package / Case | TO-261-4, TO-261AA |
| Series | - |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 600mA SOT-223 |
| Current - Quiescent (Iq) | 80µA |
Data sheet: Work in prgress, stay tuned!
