Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Alpha and Omega Semiconductor, Inc.
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

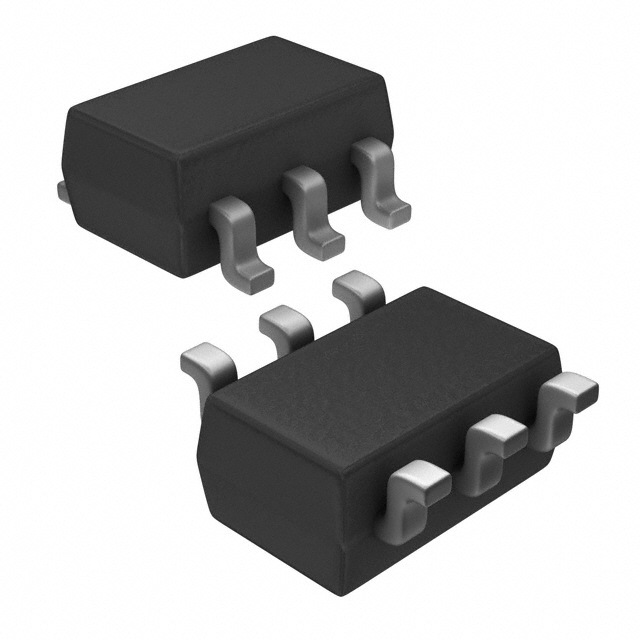

| Part Number: | AO6404 |
| Description: | MOSFET N-CH 20V 8.6A 6-TSOP |
| Lead Free Status / RoHS Status: | |
| Supplier Device Package | 6-TSOP |
| Power Dissipation (Max) | 2W (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 10V |
| Detailed Description | N-Channel 20V 8.6A (Ta) 2W (Ta) Surface Mount 6-TSOP |
| Series | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Rds On (Max) @ Id, Vgs | 17 mOhm @ 8.5A, 10V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Continuous Drain (Id) @ 25°C | 8.6A (Ta) |
| Other Names | 785-1071-2 |
| Meta Part Number | 785-1071-2-ND |
| Drain to Source Voltage (Vdss) | 20V |
| Vgs (Max) | ±12V |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package / Case | SC-74, SOT-457 |
| Manufacturer Standard Lead Time | 26 Weeks |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) (Max) @ Vgs | 17.9nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1810pF @ 10V |
| Mounting Type | Surface Mount |
| FET Feature | - |
Data sheet: Work in prgress, stay tuned!
