Category
PMIC - Voltage Regulators - DC DC Switching Regulators
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

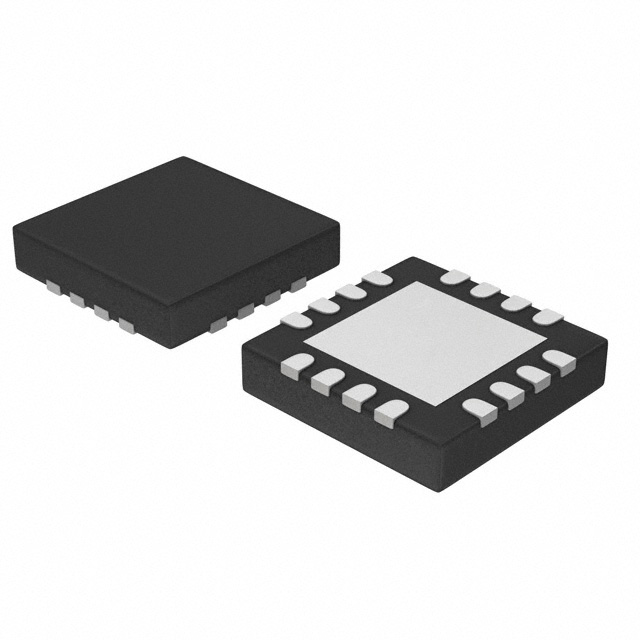

| Part Number: | ADP2164ACPZ-R7 |
| Description: | IC REG BUCK ADJ 4A SYNC 16LFCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Voltage - Input (Min) | 2.7V |
| Packaging | Digi-Reel® |
| Voltage - Output (Min/Fixed) | 0.6V |
| Meta Part Number | ADP2164ACPZ-R7DKR-ND |
| Base Part Number | ADP2164 |
| Output Type | Adjustable |
| Current - Output | 4A |
| Manufacturer Standard Lead Time | 7 Weeks |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Detailed Description | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 4A 16-WQFN Exposed Pad, CSP |
| Other Names | ADP2164ACPZ-R7DKR |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Number of Outputs | 1 |
| Voltage - Output (Max) | 6.5V |
| Package / Case | 16-WQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Series | - |
| Voltage - Input (Max) | 6.5V |
| Frequency - Switching | 500kHz ~ 1.4MHz |
| Topology | Buck |
| Function | Step-Down |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Supplier Device Package | 16-LFCSP-WQ (4x4) |
| Output Configuration | Positive |
Data sheet: Work in prgress, stay tuned!
