Category
PMIC - Voltage Regulators - DC DC Switching Regulators
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

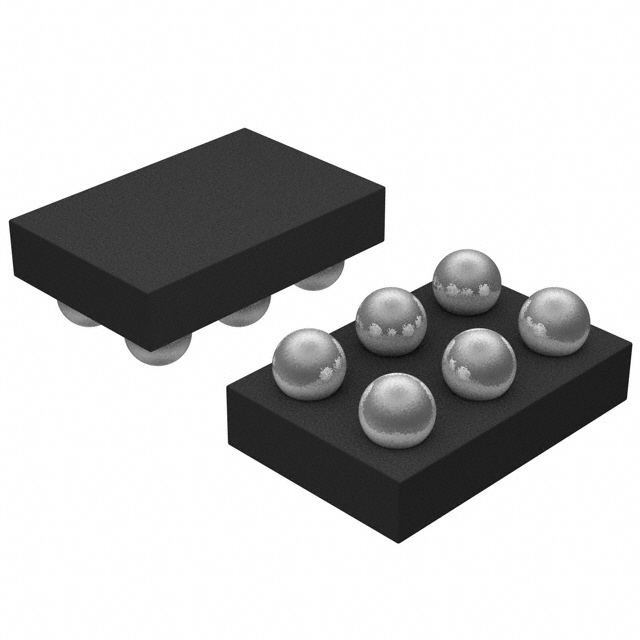

| Part Number: | ADP2138ACBZ-1.8-R7 |
| Description: | IC REG BCK 1.8V 0.8A SYNC 6WLCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Function | Step-Down |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Other Names | ADP2138ACBZ-1.8-R7CT |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Topology | Buck |
| Frequency - Switching | 3MHz |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Manufacturer Standard Lead Time | 7 Weeks |
| Packaging | Cut Tape (CT) |
| Meta Part Number | ADP2138ACBZ-1.8-R7CT-ND |
| Detailed Description | Buck Switching Regulator IC Positive Fixed 1.8V 1 Output 800mA 6-UFBGA, WLCSP |
| Package / Case | 6-UFBGA, WLCSP |
| Output Configuration | Positive |
| Current - Output | 800mA |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Base Part Number | ADP2138 |
| Number of Outputs | 1 |
| Supplier Device Package | 6-WLCSP (1.03x1.50) |
| Mounting Type | Surface Mount |
| Voltage - Input (Max) | 5.5V |
| Series | - |
| Output Type | Fixed |
| Voltage - Input (Min) | 2.3V |
Data sheet: Work in prgress, stay tuned!
