Category
Interface - Analog Switches, Multiplexers, Demultiplexers
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

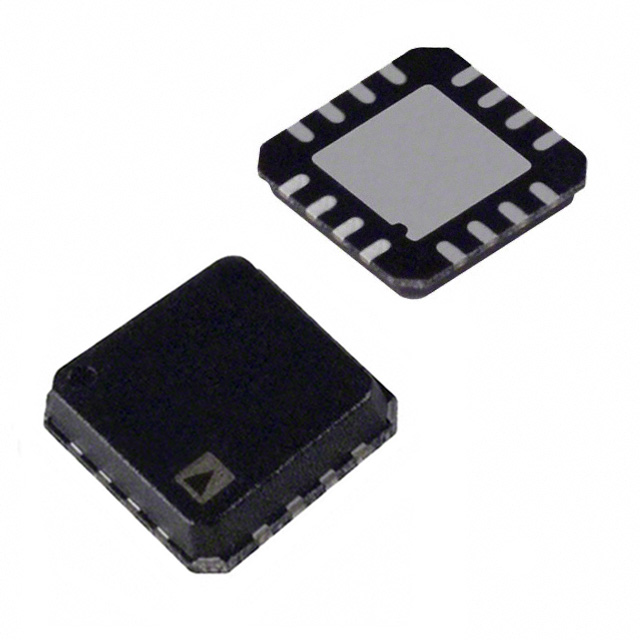

| Part Number: | ADG1408YCPZ-REEL7 |
| Description: | IC MULTIPLEXER 8X1 16LFCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Switch Circuit | - |
| -3db Bandwidth | 60MHz |
| Voltage - Supply, Dual (V±) | ±4.5 V ~ 16.5 V |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Crosstalk | -70dB @ 1MHz |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 80pF |
| Voltage - Supply, Single (V+) | 5 V ~ 16.5 V |
| Charge Injection | -50pC |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Number of Circuits | 1 |
| Base Part Number | ADG1408 |
| Other Names | ADG1408YCPZ-REEL7TR "######"ADG1408YCPZREEL7 |
| Series | - |
| Meta Part Number | ADG1408YCPZ-REEL7TR-ND |
| Packaging | Tape & Reel (TR) |
| Switch Time (Ton, Toff) (Max) | 120ns, 120ns |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| On-State Resistance (Max) | 4.7 Ohm |
| Detailed Description | 1 Circuit IC Switch 8:1 4.7 Ohm 16-LFCSP-VQ (4x4) |
| Channel-to-Channel Matching (ΔRon) | 200 mOhm |
Data sheet: Work in prgress, stay tuned!
