Category
Interface - Analog Switches, Multiplexers, Demultiplexers
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

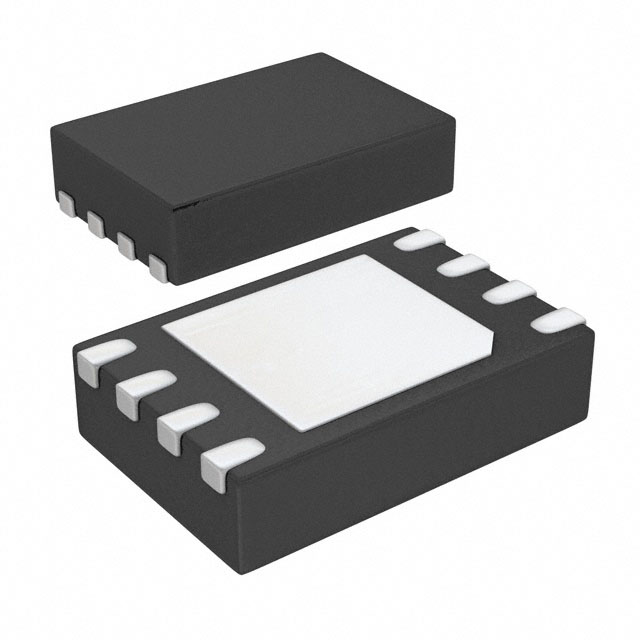

| Part Number: | ADG1401BCPZ-REEL7 |
| Description: | IC SWITCH SPST 1OHM RON 8LFCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Circuits | 1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Series | - |
| Packaging | Cut Tape (CT) |
| Other Names | ADG1401BCPZ-REEL7CT "######"ADG1401BCPZREEL7 |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | 120MHz |
| Voltage - Supply, Dual (V±) | ±4.5 V ~ 16.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply, Single (V+) | 5 V ~ 16.5 V |
| Detailed Description | 1 Circuit IC Switch 1:1 1.3 Ohm 8-LFCSP-WD (2x3) |
| On-State Resistance (Max) | 1.3 Ohm |
| Switch Circuit | SPST - NO |
| Supplier Device Package | 8-LFCSP-WD (2x3) |
| Channel-to-Channel Matching (ΔRon) | 200 mOhm |
| Meta Part Number | ADG1401BCPZ-REEL7CT-ND |
| Crosstalk | - |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Charge Injection | -12pC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Base Part Number | ADG1401 |
| Current - Leakage (IS(off)) (Max) | 400pA |
| Channel Capacitance (CS(off), CD(off)) | 36pF, 41pF |
| Manufacturer Standard Lead Time | 17 Weeks |
Data sheet: Work in prgress, stay tuned!
