| TYPE | DESCRIPTION |
| Part Number: | ADG1213YCPZ-REEL7 |

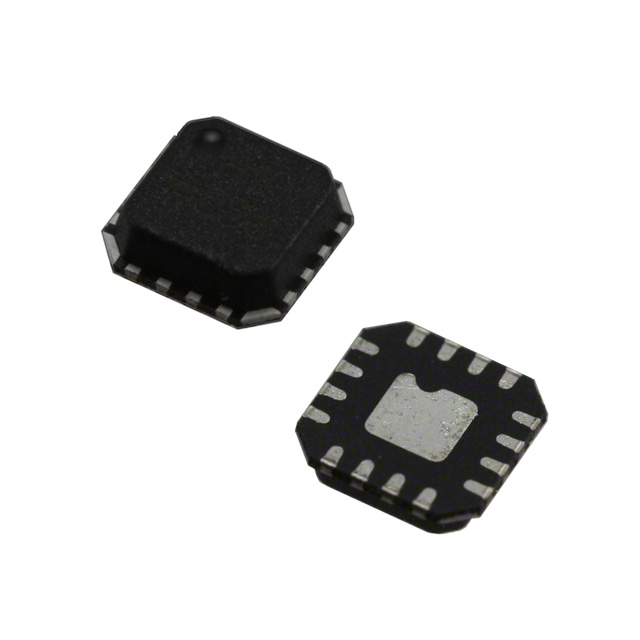

| Description: | IC SWITCH QUAD SPST 16LFCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| -3db Bandwidth | 1GHz |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Switch Time (Ton, Toff) (Max) | 130ns, 115ns |
| Crosstalk | -90dB @ 1MHz |
| Series | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 4 Circuit IC Switch 1:1 190 Ohm 16-LFCSP-WQ (3x3) |
| On-State Resistance (Max) | 190 Ohm |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Packaging | Cut Tape (CT) |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Number of Circuits | 4 |
| Voltage - Supply, Single (V+) | 5 V ~ 16.5 V |
| Other Names | ADG1213YCPZ-REEL7CT |
| Channel Capacitance (CS(off), CD(off)) | 1.1pF, 1.2pF |
| Voltage - Supply, Dual (V±) | ±4.5 V ~ 16.5 V |
| Channel-to-Channel Matching (ΔRon) | 2.5 Ohm |
| Meta Part Number | ADG1213YCPZ-REEL7CT-ND |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit | SPST - NO/NC |
| Charge Injection | -0.3pC |
| Base Part Number | ADG1213 |
| Supplier Device Package | 16-LFCSP-WQ (3x3) |
