Category
Data Acquisition - Digital to Analog Converters (DAC)
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

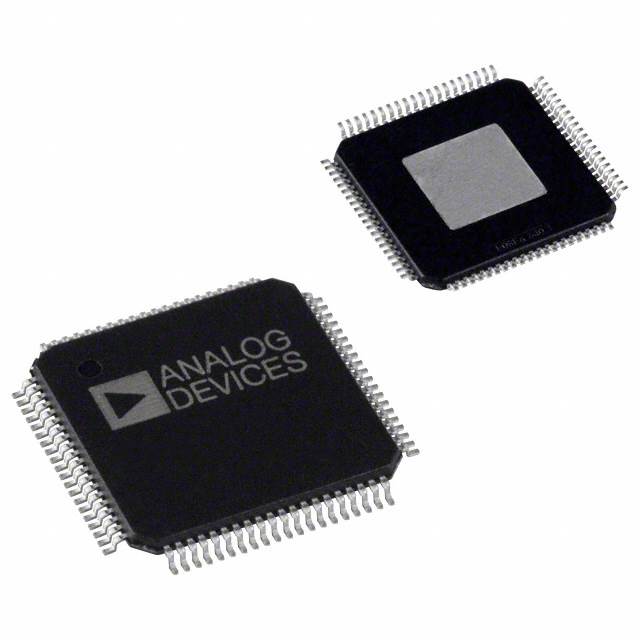

| Part Number: | AD9775BSVZ |
| Description: | IC DAC 14BIT DUAL 160MSPS 80TQFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Voltage - Supply, Analog | 3.1 V ~ 3.5 V |
| Detailed Description | 14 Bit Digital to Analog Converter 2 80-TQFP-EP (12x12) |
| Number of Bits | 14 |
| Settling Time | 11ns (Typ) |
| Number of D/A Converters | 2 |
| Manufacturer Standard Lead Time | 25 Weeks |
| Series | TxDAC+® |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Package / Case | 80-TQFP Exposed Pad |
| Architecture | Oversampling Interpolating DAC |
| Output Type | Current - Unbuffered |
| Base Part Number | AD9775 |
| INL/DNL (LSB) | ±1.5, ±1 |
| Differential Output | Yes |
| Mounting Type | Surface Mount |
| Meta Part Number | AD9775BSVZ-ND |
| Voltage - Supply, Digital | 3.1 V ~ 3.5 V |
| Data Interface | Parallel |
| Supplier Device Package | 80-TQFP-EP (12x12) |
| Packaging | Tray |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
Data sheet: Work in prgress, stay tuned!
