Category
Data Acquisition - Digital to Analog Converters (DAC)
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

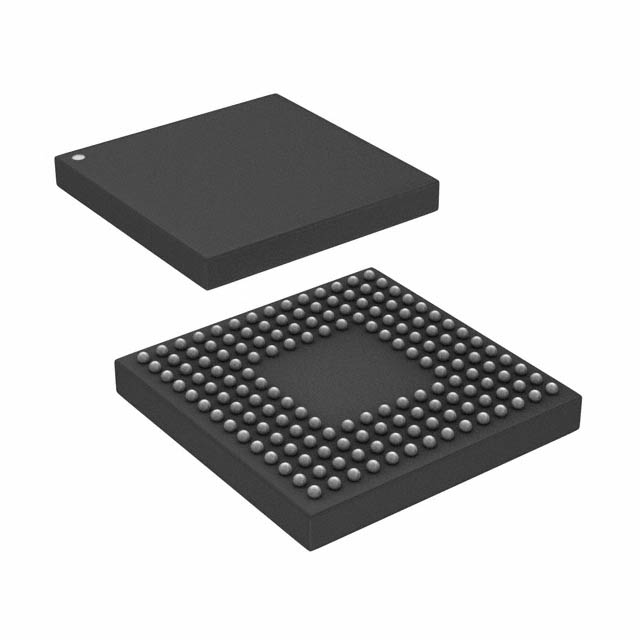

| Part Number: | AD9734BBCZRL |
| Description: | IC DAC 10BIT 1.2GSPS 160CSBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Number of D/A Converters | 1 |
| Manufacturer Standard Lead Time | 8 Weeks |
| Settling Time | - |
| Number of Bits | 10 |
| INL/DNL (LSB) | ±0.12, ±0.06 |
| Package / Case | 160-LFBGA, CSPBGA |
| Voltage - Supply, Analog | 1.7 V ~ 1.9 V, 3.13 V ~ 3.47 V |
| Base Part Number | AD9734 |
| Mounting Type | Surface Mount |
| Output Type | Current - Unbuffered |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Series | - |
| Supplier Device Package | 160-CSPBGA (12x12) |
| Detailed Description | 10 Bit Digital to Analog Converter 1 160-CSPBGA (12x12) |
| Architecture | Oversampling Interpolating DAC |
| Operating Temperature | -40°C ~ 85°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Meta Part Number | AD9734BBCZRLTR-ND |
| Reference Type | External, Internal |
| Other Names | AD9734BBCZRL-ND "######"AD9734BBCZRLTR |
| Differential Output | Yes |
| Packaging | Tape & Reel (TR) |
| Voltage - Supply, Digital | 1.7 V ~ 1.9 V, 3.13 V ~ 3.47 V |
| Data Interface | LVDS - Parallel |
Data sheet: Work in prgress, stay tuned!
