Category
Data Acquisition - Analog to Digital Converters (ADC)
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

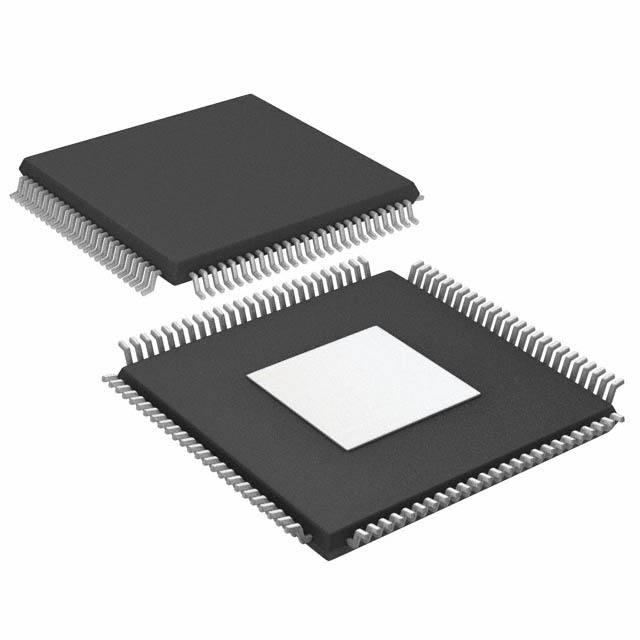

| Part Number: | AD9444BSVZ-80 |
| Description: | IC ADC 14BIT 80MSPS 100TQFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Base Part Number | AD9444 |
| Features | - |
| Number of Bits | 14 |
| Supplier Device Package | 100-TQFP-EP (14x14) |
| Ratio - S/H:ADC | 1:1 |
| Architecture | Pipelined |
| Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Number of A/D Converters | 1 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel |
| Voltage - Supply, Analog | 3.3V, 5V |
| Number of Inputs | 1 |
| Meta Part Number | AD9444BSVZ-80-ND |
| Voltage - Supply, Digital | 3 V ~ 3.6 V |
| Sampling Rate (Per Second) | 80M |
| Operating Temperature | -40°C ~ 85°C |
| Input Type | Differential |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Other Names | AD9444BSVZ80 |
| Series | - |
| Package / Case | 100-TQFP Exposed Pad |
| Reference Type | External, Internal |
| Packaging | Tray |
| Detailed Description | 14 Bit Analog to Digital Converter 1 Input 1 Pipelined 100-TQFP-EP (14x14) |
Data sheet: Work in prgress, stay tuned!
