Category
Data Acquisition - Analog to Digital Converters (ADC)
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

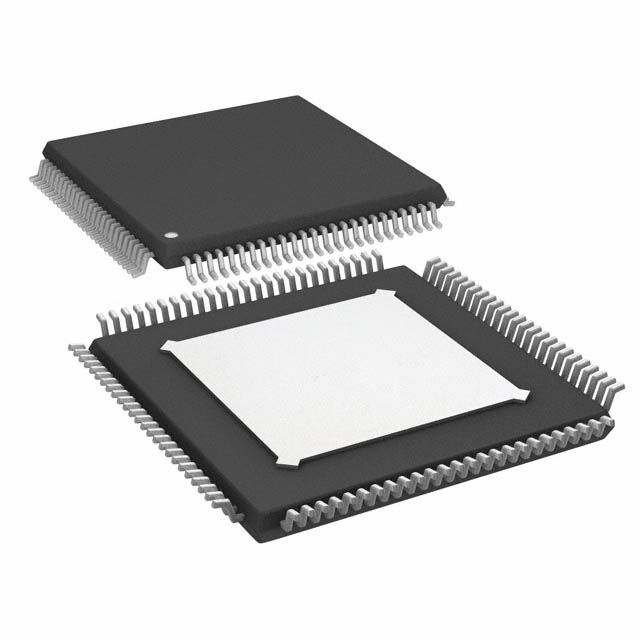

| Part Number: | AD9271BSVZ-40 |
| Description: | IC ADC OCT 12BIT 40MSPS 100-TQFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Number of Bits | 12 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Data Interface | LVDS - Serial |
| Manufacturer Standard Lead Time | 7 Weeks |
| Architecture | Pipelined |
| Voltage - Supply, Digital | 1.7 V ~ 1.9 V |
| Operating Temperature | -40°C ~ 85°C |
| Ratio - S/H:ADC | 1:1 |
| Number of Inputs | 8, 16 |
| Sampling Rate (Per Second) | 40M |
| Voltage - Supply, Analog | 1.7 V ~ 1.9 V |
| Base Part Number | AD9271 |
| Number of A/D Converters | 8 |
| Features | Simultaneous Sampling |
| Packaging | Tray |
| Input Type | Differential, Single Ended |
| Series | - |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Configuration | S/H-ADC |
| Supplier Device Package | 100-TQFP-EP (14x14) |
| Meta Part Number | AD9271BSVZ-40-ND |
| Detailed Description | 12 Bit Analog to Digital Converter 8, 16 Input 8 Pipelined 100-TQFP-EP (14x14) |
| Package / Case | 100-TQFP Exposed Pad |
| Reference Type | External, Internal |
Data sheet: Work in prgress, stay tuned!
