Category
Data Acquisition - Analog to Digital Converters (ADC)
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

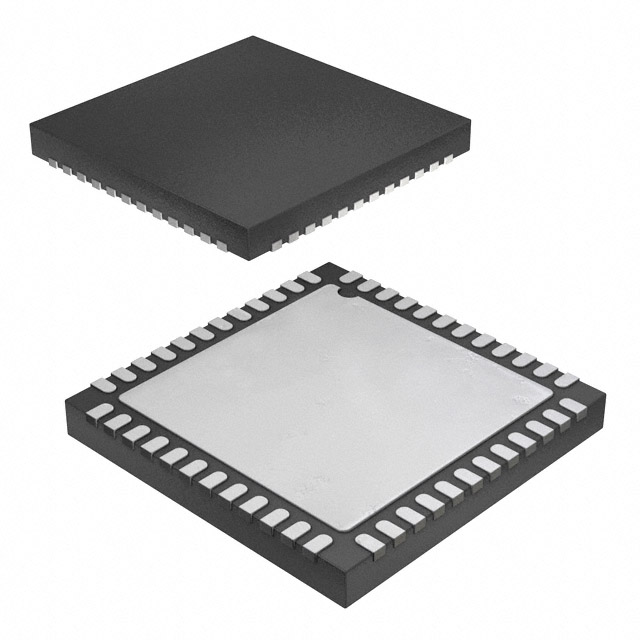

| Part Number: | AD9250BCPZ-250 |
| Description: | IC ADC 14BIT SPI/SRL 2CH 48LFCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Sampling Rate (Per Second) | 250M |
| Voltage - Supply, Analog | 1.7 V ~ 1.9 V |
| Reference Type | Internal |
| Ratio - S/H:ADC | 1:1 |
| Number of Inputs | 2 |
| Series | - |
| Other Names | AD9250BCPZ250 |
| Number of Bits | 14 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Manufacturer Standard Lead Time | 7 Weeks |
| Voltage - Supply, Digital | 1.7 V ~ 1.9 V |
| Meta Part Number | AD9250BCPZ-250-ND |
| Features | Simultaneous Sampling |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Packaging | Tray |
| Input Type | Differential |
| Configuration | S/H-ADC |
| Number of A/D Converters | 2 |
| Data Interface | JESD204B |
| Architecture | Pipelined |
| Supplier Device Package | 48-LFCSP-WQ (7x7) |
| Detailed Description | 14 Bit Analog to Digital Converter 2 Input 2 Pipelined 48-LFCSP-WQ (7x7) |
| Base Part Number | AD9250 |
Data sheet: Work in prgress, stay tuned!
