Category
Data Acquisition - Analog to Digital Converters (ADC)
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

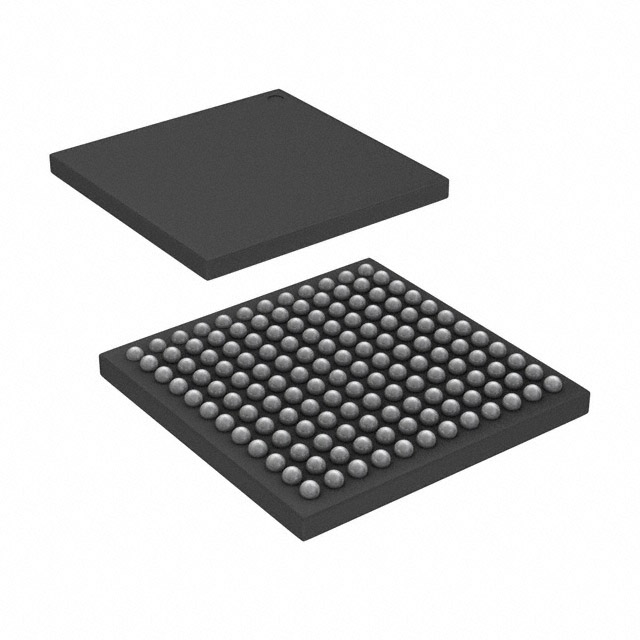

| Part Number: | AD9249BBCZ-65 |
| Description: | IC ADC 14BIT 65MSPS 144CSBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Package / Case | 144-LFBGA, CSPBGA |
| Configuration | S/H-ADC |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Number of A/D Converters | 1 |
| Input Type | Differential |
| Architecture | Pipelined |
| Reference Type | Internal |
| Features | Simultaneous Sampling |
| Series | - |
| Base Part Number | AD9249 |
| Packaging | Tray |
| Sampling Rate (Per Second) | 65M |
| Number of Bits | 14 |
| Voltage - Supply, Digital | 1.7 V ~ 1.9 V |
| Voltage - Supply, Analog | 1.7 V ~ 1.9 V |
| Detailed Description | 14 Bit Analog to Digital Converter 16 Input 1 Pipelined 144-CSPBGA (10x10) |
| Ratio - S/H:ADC | 1:1 |
| Meta Part Number | AD9249BBCZ-65-ND |
| Data Interface | LVDS - Serial |
| Operating Temperature | -40°C ~ 85°C |
| Manufacturer Standard Lead Time | 7 Weeks |
| Supplier Device Package | 144-CSPBGA (10x10) |
| Number of Inputs | 16 |
Data sheet: Work in prgress, stay tuned!
