Category
Data Acquisition - Digital to Analog Converters (DAC)
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

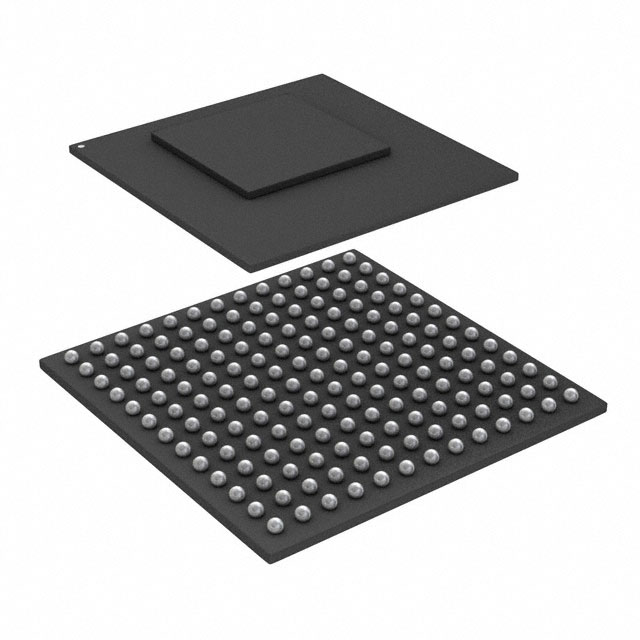

| Part Number: | AD9161BBCZ |
| Description: | IC DAC 11BIT 1CH BC-169-2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Supplier Device Package | 169-CSPBGA (11x11) |
| Output Type | Current - Unbuffered |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Type | External, Internal |
| Packaging | Tray |
| Base Part Number | AD9161 |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Data Interface | JESD204B |
| Number of Bits | 11 |
| Settling Time | - |
| Operating Temperature | -40°C ~ 85°C |
| INL/DNL (LSB) | ±2.7, ±1.7 |
| Series | - |
| Meta Part Number | AD9161BBCZ-ND |
| Manufacturer Standard Lead Time | 7 Weeks |
| Mounting Type | Surface Mount |
| Architecture | Quad-Switch |
| Number of D/A Converters | 1 |
| Package / Case | 169-VFBGA, CSPBGA |
| Voltage - Supply, Analog | 1.14 V ~ 1.326 V, 2.375 V ~ 2.625 V |
| Detailed Description | 11 Bit Digital to Analog Converter 1 169-CSPBGA (11x11) |
| Differential Output | No |
Data sheet: Work in prgress, stay tuned!
