Category
Data Acquisition - Digital to Analog Converters (DAC)
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

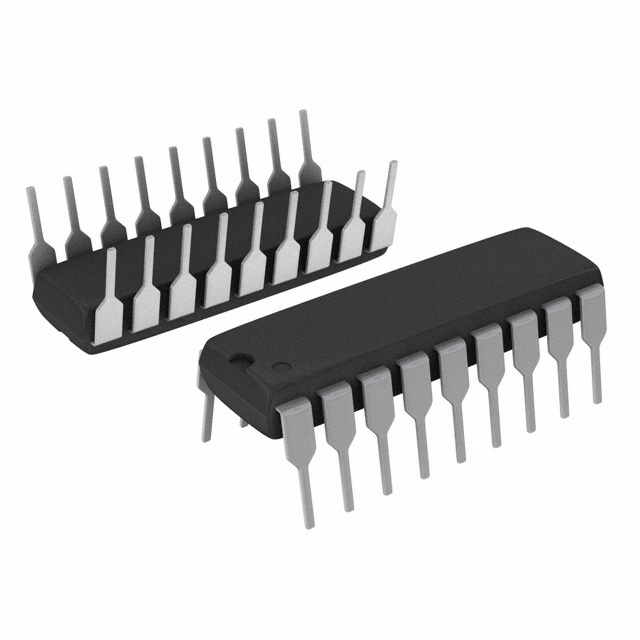

| Part Number: | AD7541AKNZ |
| Description: | IC DAC 12BIT MULT MONO 18-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Architecture | R-2R |
| Differential Output | Yes |
| Voltage - Supply, Analog | 5 V ~ 16 V |
| Settling Time | 600ns (Typ) |
| Mounting Type | Through Hole |
| Packaging | Tube |
| Operating Temperature | 0°C ~ 70°C |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) |
| Number of Bits | 12 |
| Supplier Device Package | 18-PDIP |
| Base Part Number | AD7541 |
| Reference Type | External |
| Number of D/A Converters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Detailed Description | 12 Bit Digital to Analog Converter 1 18-PDIP |
| Output Type | Current - Unbuffered |
| Meta Part Number | AD7541AKNZ-ND |
| Data Interface | Parallel |
| Voltage - Supply, Digital | 5 V ~ 16 V |
| Package / Case | 18-DIP (0.300, 7.62mm) |
| Manufacturer Standard Lead Time | 7 Weeks |
| Series | - |
Data sheet: Work in prgress, stay tuned!
