Category
PMIC - Voltage Reference
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

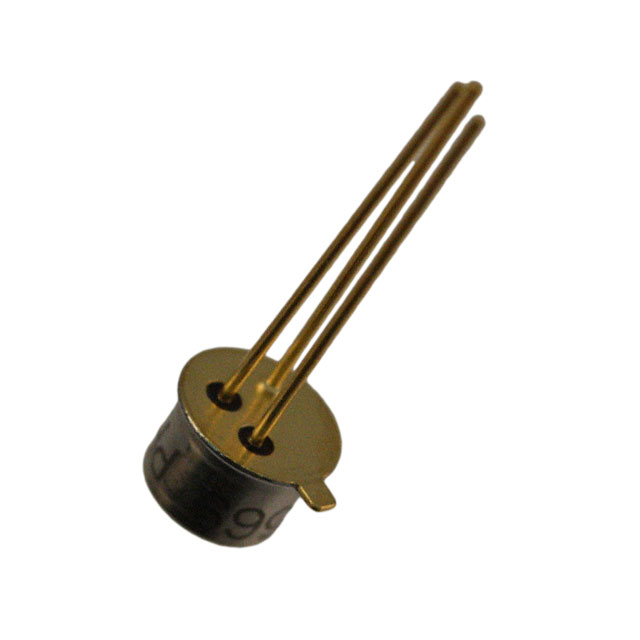

| Part Number: | AD580UH |
| Description: | IC VREF SERIES 2.5V TO52-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Reference Type | Series |
| Detailed Description | Series Voltage Reference IC ±0.4% 10mA TO-52-3 |
| Temperature Coefficient | 10ppm/°C |
| Noise - 10Hz to 10kHz | - |
| Meta Part Number | AD580UH-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks |
| Voltage - Input | 4.5 V ~ 30 V |
| Supplier Device Package | TO-52-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Voltage - Output (Min/Fixed) | 2.5V |
| Series | - |
| Packaging | Bulk |
| Output Type | Fixed |
| Base Part Number | AD580 |
| Package / Case | TO-206AC, TO-52-3 Metal Can |
| Noise - 0.1Hz to 10Hz | 8µVp-p |
| Current - Supply | 1.5mA |
| Mounting Type | Through Hole |
| Tolerance | ±0.4% |
| Current - Output | 10mA |
Data sheet: Work in prgress, stay tuned!
