Category
Data Acquisition - Analog to Digital Converters (ADC)
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

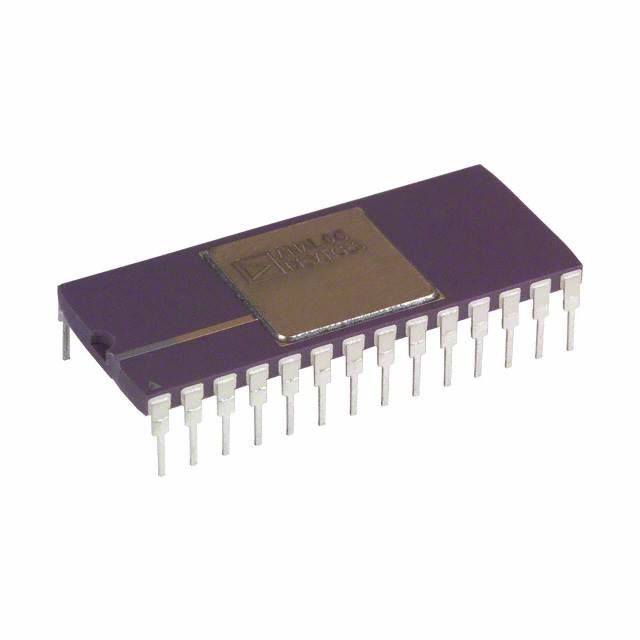

| Part Number: | AD1674TD/883B |
| Description: | IC ADC 12BIT 100KSPS 28CDIP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Packaging | Tube |
| Features | - |
| Voltage - Supply, Analog | 11.4 V ~ 16.5 V |
| Reference Type | Internal |
| Number of A/D Converters | 1 |
| Voltage - Supply, Digital | 5V |
| Number of Bits | 12 |
| Input Type | Single Ended |
| Package / Case | 28-CDIP (0.600, 15.24mm) |
| Meta Part Number | AD1674TD/883B-ND |
| Number of Inputs | 1 |
| Architecture | SAR |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Data Interface | Parallel |
| Operating Temperature | -55°C ~ 125°C |
| Ratio - S/H:ADC | 1:1 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Series | - |
| Sampling Rate (Per Second) | 100k |
| Detailed Description | 12 Bit Analog to Digital Converter 1 Input 1 SAR 28-CDIP |
| Supplier Device Package | 28-CDIP |
| Configuration | S/H-ADC |
| Base Part Number | AD1674 |
Data sheet: Work in prgress, stay tuned!
