Category
PMIC - Motor Drivers, Controllers
Manufacturer
Allegro MicroSystems
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

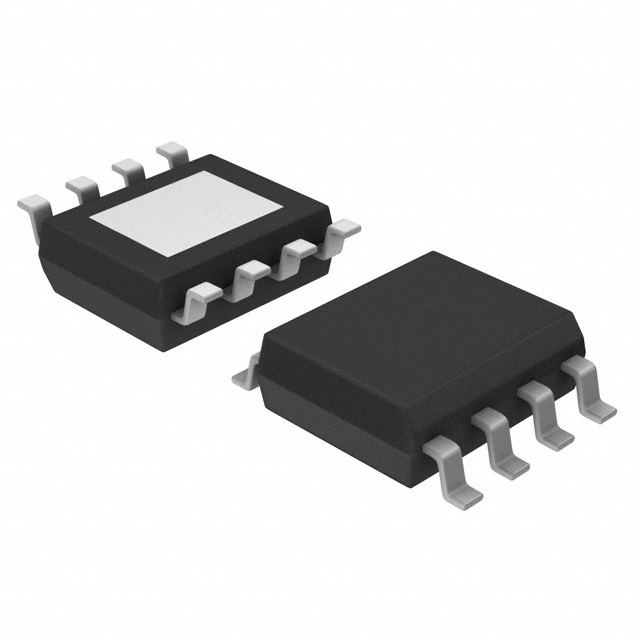

| Part Number: | A4950ELJTR-T |
| Description: | IC MOTOR DRIVER PAR 8SOIC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface | Analog |
| Technology | DMOS |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) Exposed Pad |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Meta Part Number | 620-1400-1-ND |
| Applications | General Purpose |
| Series | - |
| Current - Output | 3.5A |
| Motor Type - AC, DC | Brushed DC |
| Detailed Description | Motor Driver DMOS Analog 8-SOIC-EP |
| Output Configuration | Half Bridge (2) |
| Mounting Type | Surface Mount |
| Voltage - Load | 8 V ~ 40 V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Motor Type - Stepper | - |
| Packaging | Cut Tape (CT) |
| Supplier Device Package | 8-SOIC-EP |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Other Names | 620-1400-1 |
| Base Part Number | A4950 |
| Step Resolution | - |
| Voltage - Supply | 8 V ~ 40 V |
Data sheet: Work in prgress, stay tuned!
