Category
PMIC - Motor Drivers, Controllers
Manufacturer
Allegro MicroSystems
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

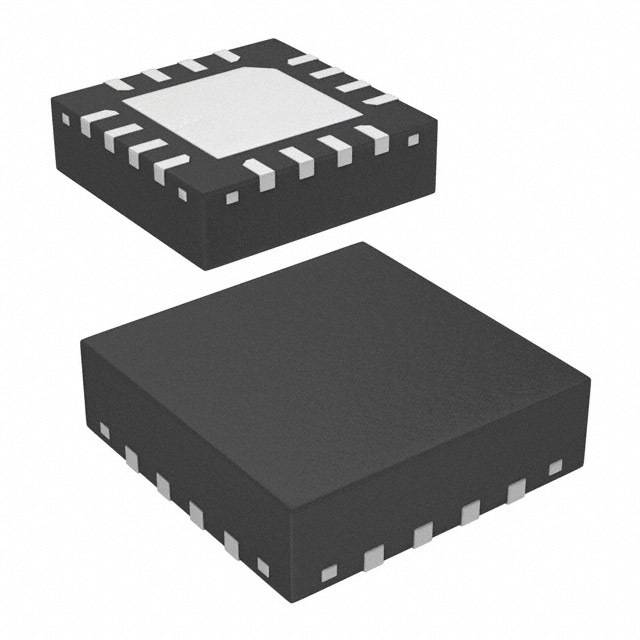

| Part Number: | A3950SEUTR-T |
| Description: | IC MOTOR DRIVER PAR 16QFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-QFN (4x4) |
| Output Configuration | Half Bridge (2) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Package / Case | 16-WQFN Exposed Pad |
| Base Part Number | A3950 |
| Other Names | 620-1296-1 |
| Motor Type - Stepper | - |
| Voltage - Load | 8 V ~ 36 V |
| Voltage - Supply | 8 V ~ 36 V |
| Meta Part Number | 620-1296-1-ND |
| Manufacturer Standard Lead Time | 16 Weeks |
| Detailed Description | Motor Driver DMOS Parallel 16-QFN (4x4) |
| Technology | DMOS |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2.8A |
| Motor Type - AC, DC | Brushed DC |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Applications | General Purpose |
| Series | - |
| Step Resolution | - |
| Packaging | Cut Tape (CT) |
| Interface | Parallel |
Data sheet: Work in prgress, stay tuned!
