Category
Diodes - Rectifiers - Arrays
Manufacturer
Sangdest Microelectronics / Nanjing (SMC Diode Solutions)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

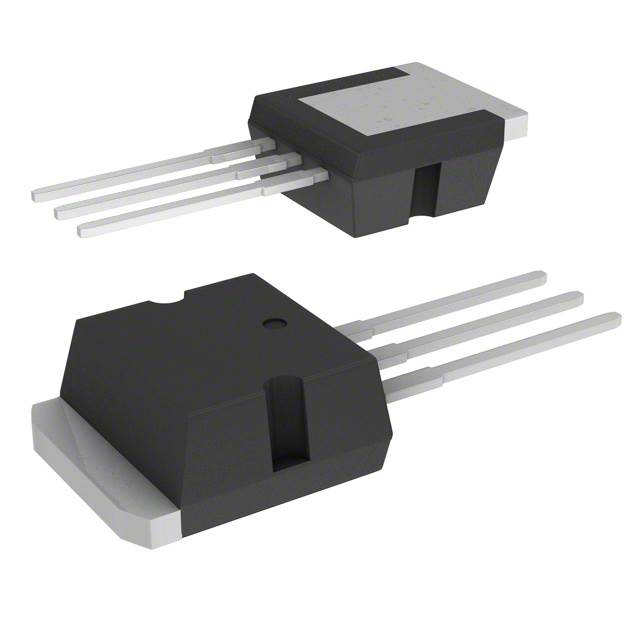

| Part Number: | 30CTQ045-1 |
| Description: | DIODE SCHOTTKY 45V 15A TO262 |
| Lead Free Status / RoHS Status: | |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Speed | Fast Recovery = 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1mA @ 45V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Diode Configuration | 1 Pair Common Cathode |
| Voltage - Forward (Vf) (Max) @ If | 620mV @ 15A |
| Manufacturer Standard Lead Time | 6 Weeks |
| Voltage - DC Reverse (Vr) (Max) | 45V |
| Detailed Description | Diode Array 1 Pair Common Cathode Schottky 45V 15A Through Hole TO-262-3 Long Leads, I²Pak, TO-262AA |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-262 |
| Other Names | 30CTQ045-1SMC |
| Series | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Packaging | Tube |
| Diode Type | Schottky |
| Meta Part Number | 30CTQ045-1SMC-ND |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
Data sheet: Work in prgress, stay tuned!
