Category
Thyristors - SCRs
Manufacturer
Central Semiconductor
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

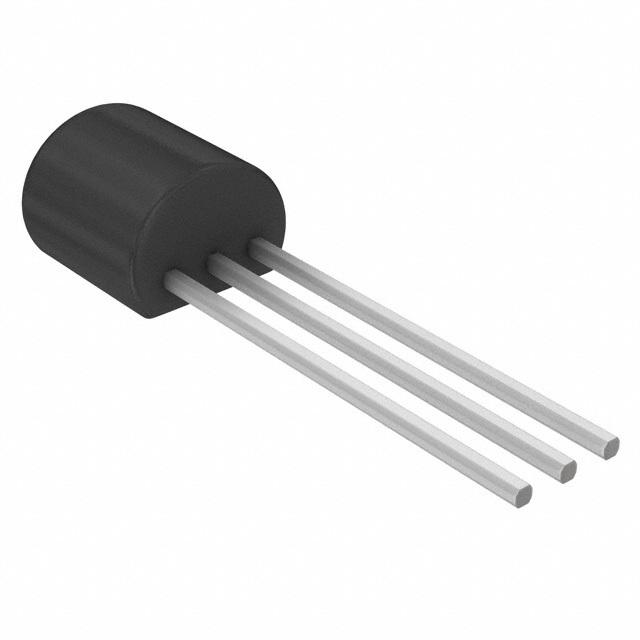

| Part Number: | 2N5061 |
| Description: | SCR 0.8A 60V TO-92 |
| Lead Free Status / RoHS Status: | |
| Series | - |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - |
| Mounting Type | Through Hole |
| Current - Gate Trigger (Igt) (Max) | 200µA |
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Voltage - Off State | 60V |
| Manufacturer Standard Lead Time | 16 Weeks |
| Voltage - On State (Vtm) (Max) | 1.7V |
| Supplier Device Package | TO-92 |
| Operating Temperature | -40°C ~ 125°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Voltage - Gate Trigger (Vgt) (Max) | 800mV |
| Current - Hold (Ih) (Max) | 5mA |
| Other Names | 2N5061 LEAD FREE 2N5061 PBFREE 2N5061CS |
| Detailed Description | SCR 60V 800mA Sensitive Gate Through Hole TO-92 |
| Current - On State (It (RMS)) (Max) | 800mA |
| Current - Off State (Max) | 1µA |
| SCR Type | Sensitive Gate |
| Meta Part Number | 2N5061CS-ND |
Data sheet: Work in prgress, stay tuned!
