ADV7611BSWZ-P Description

The ADV7611BSWZ-P is a single-input HDMI receiver for automotive, industrial, and professional applications. It supports HDMI 1.4a features, including all mandatory 3D TV formats, and handles video resolutions up to UXGA 60 Hz at 8-bit color depth. The device integrates a CEC controller for capability discovery and control (CDC). Its audio extraction capabilities are versatile, supporting I2S, S/PDIF, and DST audio streams, while an advanced mute controller eliminates unwanted noise in the audio output.

Fabricated using advanced CMOS technology, the ADV7611BSWZ-P features a compact 10 mm × 10 mm, 64-lead LQFP_EP surface-mount package that is RoHS-compliant and operates across a wide industrial temperature range of −40°C to +85°C. A central component processor handles video signal processing, offering features such as contrast, brightness, and saturation adjustments, STDI detection, free run, and synchronization alignment controls.

ADV7611BSWZ-P Specifications

(Contact us for a quote)

ADV7611BSWZ-P Working Principle

The core function of the ADV7611BSWZ-P is to accurately convert HDMI signals output by high-definition devices into digital image formats recognizable by display processors or main control chips. During operation, its integrated HDMI receiver first decodes and denoises high-speed differential signals, and automatically handles the HDCP content protection protocol.

It features a built-in EDID (Extended Display Identification Data) memory that actively communicates with the source device. The processed video signal is then output to a downstream FPGA or video processor via a 24-bit parallel CMOS interface or equivalent bus. With its low-power design and compact form factor, it is ideal for automotive displays, surveillance screens, and portable projectors.

ADV7611BSWZ-P Features

l  High-Definition Multimedia Interface (HDMI®) 1.4a features supported

- All mandatory and additional 3D video formats supported

- Extended colorimetry, including sYCC601, Adobe RGB, Adobe YCC 601, xvYCC extended gamut color

- CEC 1.4-compatible

l  HDMI receiver

- 165 MHz maximum TMDS clock frequency

- 24-bit output pixel bus

- High-bandwidth Digital Content Protection (HDCP) 1.4 support with internal HDCP keys

- HDCP repeater support

- Up to 127 KSVs supported

- Integrated CEC controller

- Programmable HDMI equalizer

- 5 V detect and Hot Plug assert for HDMI port

l  Audio support

- SPDIF (IEC 60958-compatible) digital audio

- HDMI audio extraction support

- Advanced audio mute feature

l  General

- Interrupt controller with two interrupt outputs

- Standard identification (STDI) circuit

- Highly flexible 24-bit pixel output interface

- Internal EDID RAM

- Any-to-any 3 × 3 color space conversion (CSC) matrix

- 2-layer PCB design supported

- 64-lead LQFP_EP, 10 mm × 10 mm package

l  Qualified for automotive applications

(Contact us for a quote)

ADV7611BSWZ-P Functional Overview

1. HDMI Receiver

1)      Supports mandatory and optional 3D formats, HDTV up to 1080p and UXGA (8‑bit, 162.5 MHz TMDS clock).

2)      Features programmable equalization compensating cable loss, supporting stable reception up to 30 meters.

3)      Compliant with HDCP 1.4 with internal keys for encrypted video authentication and decryption.

4)      Includes sync regeneration, TERC4 error detection, audio mute control to avoid noise/pops.

5)      Supports LPCM/IEC 61937 audio, internal EDID RAM, CEC controller, and hot-plug output.

2. (CP) Component Processor (CP)

1)      Equipped with a 3×3 any-to-any color space conversion (CSC) matrix for YPrPb↔RGB and other formats.

2)      Supports 525i/p, 625i/p, 720p, 1080i/p and other video standards.

3)      Provides manual controls: contrast, brightness, hue, saturation.

4)      Supports free-run mode for stable timing without input; 162.5 MHz processing rate.

5)      Supports RGB‑to‑YCrCb conversion with 4:2:2 decimation; DE signal for HDMI/DVI transmitters.

3. Other Functions

1)      Programmable HS, VS, FIELD, DE outputs with configurable polarity, position and width.

2)      Dual interrupt pins (INT1, INT2) and low-power shutdown mode.

3)      Default I²C address 0x98, configurable to 0x9A via pin pullup and I²C command.

4)      Packaged in 10 mm × 10 mm RoHS LQFP_EP; operating temperature: −40°C to +85°C.

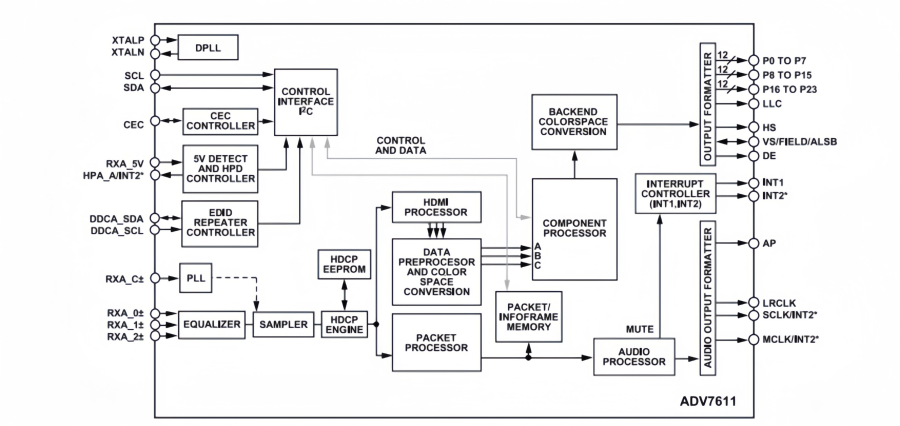

ADV7611BSWZ-P Block Diagram

Here is detailed functional block diagram of ADV7611 series below:

ADV7611BSWZ-P Applications

1. Projection Devices

The ADV7611BSWZ-P can serve as the HDMI signal receiver core for high-definition projectors, enabling stable decoding and transmission of high-resolution video while supporting audio signal output.

2. Automotive Electronics

This chip is suitable for automotive infotainment systems, processing in-vehicle HDMI video signals to achieve navigation display, media playback, and rear-seat entertainment functions.

3. Video Conferencing Systems

The ADV7611BSWZ-P provides clear audio in high-definition video conferencing terminals for enterprises or distance education. Its integrated audio mute controller prevents noise caused by signal anomalies, ensuring a smooth meeting experience.

4. High-Definition Television (HDTV)

This receiver is suitable for HDTVs, decoding various HDMI video formats, including 1080p and UXGA, and supports 3D video playback, enhancing the home entertainment experience.

5. Audio/Video Receiver (AVR) and Home Theater Kit (HTiB)

In AVRs and HTiBs, the ADV7611BSWZ-P can handle multiple HDMI inputs, enabling synchronized audio and video output for a high-quality audio-visual experience in home theaters.

6. Soundbar

This chip can be used in HDMI input soundbars to achieve high-fidelity decoding and output of audio signals, while also being compatible with HDMI transmission from TVs or multimedia devices, providing immersive sound effects.

7. Video Switcher

The ADV7611BSWZ-P can be used in multi-HDMI video switchers, supporting signal routing, format conversion, and long cable equalization to ensure stability and high-definition image quality across multiple device inputs and outputs.

(Contact us for a quote)

ADV7611BSWZ-P vs. ADV7611BSWZ-P-RL

ADV7611BSWZ-P and ADV7611BSWZ-P-RL are identical in chip performance, specifications, package size, and electrical characteristics. The only difference lies in the packaging method:

Packaging Type

l  ADV7611BSWZ-P (Tray): Chips are neatly arranged in an anti-static tray, suitable for small-batch sample development, manual soldering, or repair applications.

l  ADV7611BSWZ-P-RL (Reel/Tape & Reel): Chips are embedded in a continuous plastic tape and wound on a reel, designed for large-scale automated production (SMT) and can be directly loaded into pick-and-place feeders for high-speed mechanical handling.

Selection Recommendations

l  Small-batch or repair use: Tray (-P) is more flexible, and many suppliers support individual sales.

l  Mass production: Reel (-RL) is preferred, compatible with automated production lines, and better protects pins during transport and high-speed assembly.

Suffix Explanation

l  BSWZ: LQFP package, RoHS-compliant, lead-free.

l  -P: Supports HDCP keys, ensuring compatibility with copyright-protected HDMI content.
