With the rapid development of UAV technology, system architecture is evolving toward higher bandwidth, lower power consumption, and greater integration. As a crucial part of UAV components, the RF communication link not only affects flight stability but also directly determines communication range and data transmission quality. Therefore, choosing reliable and compact RF components is an important step in enhancing the overall capability of UAVs.
The MM1001 is a high-performance RF solution designed specifically for UAV communication needs. It provides stable RF performance in complex environments while optimizing space utilization within the drone body, supporting lightweight design and extended flight endurance. For UAV platforms operating in high-interference and high-dynamic scenarios, MM1001 brings significant value.
As UAV application scenarios continue to expand, the demand for reliable communication links will only grow stronger. MM1001 plays a key role among UAV components, enabling stronger RF performance and architectural potential for the next generation of UAV systems.

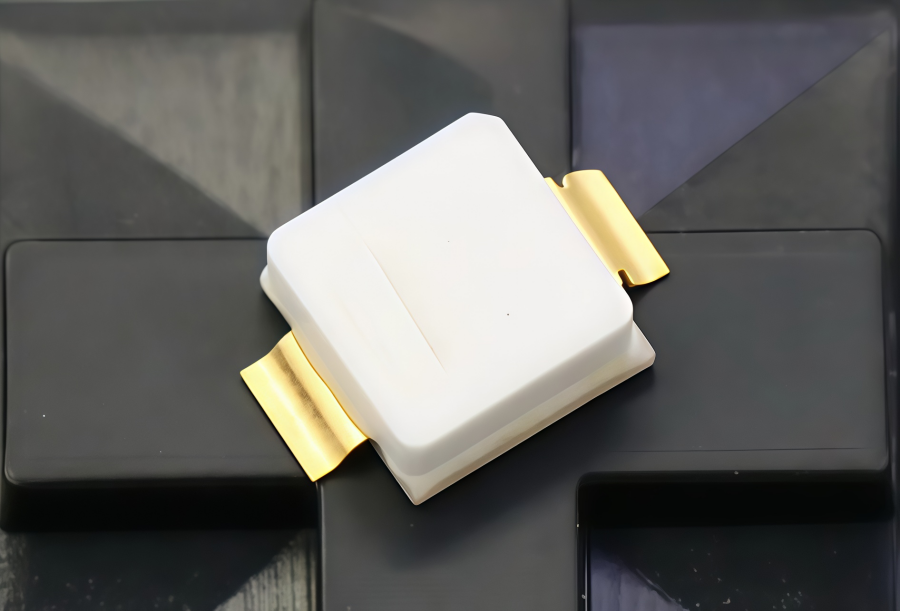

What Is MM1001 RF LDMOS FET?
The MM1001 is a high-performance 10-watt LDMOS FET, specifically engineered for rugged, wide-band commercial and industrial applications. It is good for demanding RF systems operating at frequencies up to 2 GHz. The device supports Class AB/B and Class C operation, accommodating all standard modulation formats, which provides flexibility for a wide range of RF designs. In addition, the MM1001 plays a critical role in high-performance RF subsystems in the context of UAVs.
Key Benefits
• High Efficiency and Linear Gain Operations
• Integrated ESD Protection
• Excellent thermal stability, low HCI drift
• Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation
• Pb-free, RoHS-compliant
Suitable Applications
• 2-30MHz (HF or Short wave communication)
• 30-88MHz (Ground communication)
• 54-88MHz (TV VHF I)
• 88-108MHz (FM)
• 118 -140MHz (Avionics)
• 136-174MHz (Commercial ground communication)
• 160-230MHz (TV VHF III)
• 30-512MHz (Jammer, Ground/Air communication)
• 470-860MHz (TV UHF)
• 100kHz - 1000MHz (ISM, instrumentation)
What Makes MM1001 Ideal for UAV Control?
The MM1001 high-power RF transistor is built using advanced LDMOS technology. It offers excellent RF signal amplification. Its high gain can strengthen UAV control signals and reduce signal loss over long distances. It also maintains stable performance at high frequencies, matching the typical RF bands used in drones. This helps prevent signal distortion, delays, or loss of control, ensuring smooth communication between the ground station and the UAV.
UAVs often operate in harsh environments for tasks like mapping and inspection. The MM1001 transistor has strong thermal stability. Its package design allows effective heat dissipation. It can operate continuously at high power, reducing the risk of failures caused by high temperatures. This ensures reliable performance even in cold high-altitude conditions or areas with strong electromagnetic interference.
From an installation perspective, the MM1001 package is easy to integrate into compact UAV communication modules. It does not add much size or weight, supporting lightweight drone designs. This combination of adaptability and efficiency makes it easier and cheaper to develop and maintain UAV control systems.
Overall, the MM1001 provides stable and reliable RF performance for UAVs. It strengthens signal transmission, ensures safe control, and supports continuous operation in challenging conditions. Its features make it a key component for modern and next-generation drone systems.
How Does MM1001 Support UAV Applications?
In modern UAV systems, stable communication links and efficient data transfer directly affect flight control and mission performance. As a high-performance RF core component, the MM1001 LDMOS RF transistor ensures reliable signal transmission, efficient data return, and overall system stability. The following sections will explain the key advantages and roles of MM1001 in UAV applications.
1. Enhance Control Signal Strength
The MM1001 RF transistor provides 10-watt high-power output. UAV control commands and flight feedback rely on RF signals. Over long distances, signals can weaken. As a core RF amplifier, MM1001 boosts signal gain and reduces transmission loss. This ensures the ground station can clearly receive flight data.
2. Support Multi-Band Communication
MM1001 works across a wide frequency range, from high frequency to ultra-high frequency. Different UAV applications require different bands. For example, urban inspection drones may use ultra-high frequencies to avoid building interference. Mapping drones may use high frequencies for faster data transfer. Its wide-band capability allows easy integration into UAV communication modules without extra customization.
3. Handle Complex Flight Environments
MM1001 is a rugged, unmatched LDMOS RF transistor. It has excellent thermal stability and interference resistance. UAVs operating in high temperatures, high altitudes, or strong electromagnetic environments can rely on MM1001 to maintain stable performance. Signals remain clear and the communication system works reliably.
4. Enable Efficient Flight Data Transmission
UAVs performing mapping or inspection need to send real-time HD images, 3D terrain, or large data files. MM1001’s high power allows efficient RF data transfer. This prevents signal lag, image blur, or data loss during transmission.
5. Extend UAV Flight Time
LDMOS technology provides high energy efficiency. MM1001 outputs high power while keeping its own energy use low. Low power consumption frees more battery for flight motors and core systems. This helps extend UAV mission time, supporting long inspections, logistics, and other high-endurance applications.
6. Simplify Communication Module Design
MM1001 is a standardized high-power RF transistor. It works without complex external matching circuits. Its compact package fits easily into UAV communication modules. This reduces space use in the UAV body and leaves room for batteries, sensors, and other components.

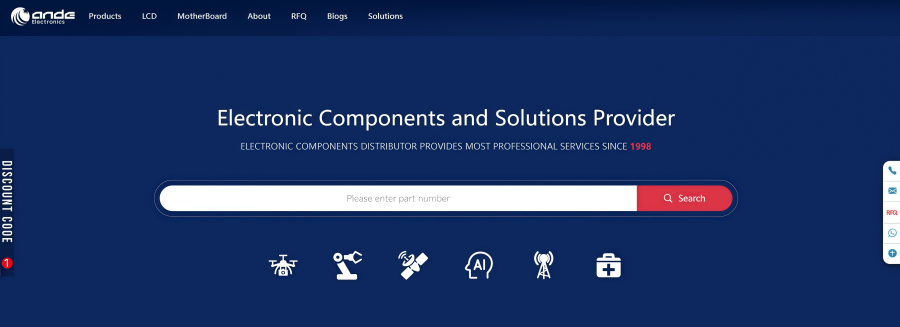

Ande Electronics: Offering RF Solutions for UAVs
As a core RF component for UAVs, the MM1001 LDMOS transistor offers outstanding advantages. It ensures reliable signal transmission, efficient data return, and overall system stability. Whether in urban inspection, high-altitude mapping, or logistics, MM1001 supports UAVs in performing tasks with high precision and efficiency.
Ande Electronics is dedicated to providing complete electronic component solutions for all types of UAVs. The company offers key chip support and a wide range of RF components. These meet the needs of flight control, navigation, image processing, and multi-sensor data fusion. With a stable supply chain and professional technical service, Ande Electronics delivers high-quality UAV RF components. This helps drone manufacturers speed up product updates and technology deployment, enabling smart upgrades in mapping, inspection, logistics, and security applications.
