In modern medical fields, accurate and efficient diagnostic tools are indispensable. The rapid development of Liquid Crystal Display (LCD) technology has brought unprecedented advancements to medical diagnostic displays. As a crucial visual presentation tool, LCD screens play an important role in improving diagnostic accuracy and medical efficiency.
This article will explore the application solutions of LCD screens in medical diagnostic displays and detail their advantages, technical features, and more.
Resolution and Contrast Performance
The excellent performance of LCD screens in resolution and contrast allows them to display extremely detailed image details and rich color gradations. This is particularly important for medical diagnostics, as doctors need to observe high-quality images for accurate diagnoses. Modern LCD screens typically support 4K or even higher resolutions, ensuring that every subtle detail in medical images is clearly visible. Additionally, compared to traditional Cathode Ray Tube (CRT) monitors, LCD screens have lower power consumption. This not only reduces hospital operating costs but also aligns with current green environmental trends. The LED backlight used in LCD screens is more energy-efficient and contains no harmful substances like mercury, making it more environmentally friendly.
Longevity and Stability
LCD screens have a long lifespan and stable performance. In medical environments, display equipment needs to work continuously for long periods, making the stability and durability of the displays particularly important. The average lifespan of an LCD screen usually exceeds 50,000 hours, meeting the demands of hospitals for long-term, high-intensity usage. Additionally, LCD screens generally feature adjustable brightness and anti-glare capabilities, providing clear images under various lighting conditions. This is especially crucial for environments with complex lighting, such as operating rooms and emergency rooms.
Wide Applications in Medical Diagnostics

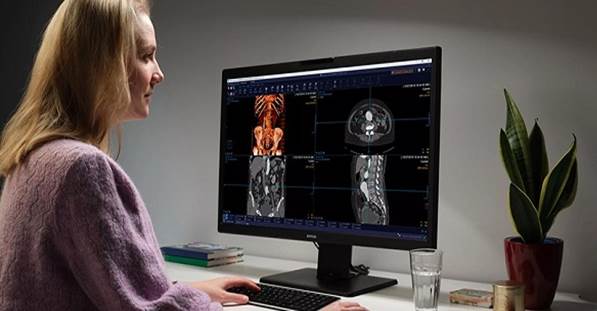

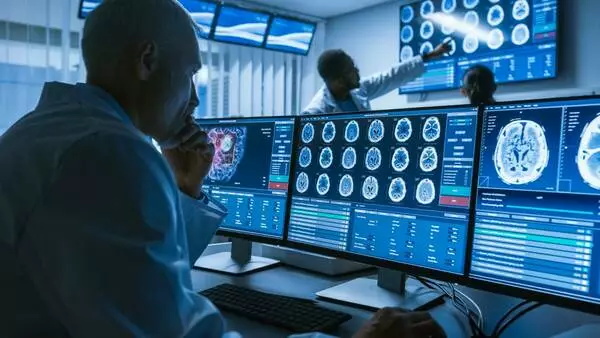

LCD screens are widely used in medical diagnostics. One of the primary application areas is radiographic imaging diagnostics. High-resolution LCD screens can accurately present medical images from X-rays, CT scans, MRIs, etc., helping doctors to observe lesion areas more clearly and make accurate diagnoses. This is especially important in mammography screenings and fracture diagnostics, where detailed image requirements are high. The high resolution and high contrast of LCD screens significantly enhance diagnostic accuracy.
In pathological analysis, which requires observing the microscopic structure of tissue samples, the high clarity and accurate color reproduction of LCD screens meet these demands. Pathologists can use LCD screens to identify the morphology and distribution of pathological cells more clearly, providing reliable evidence for pathological diagnoses.
During surgeries, LCD screens are widely used for real-time image navigation and monitoring. LCD screens can display magnified images of the surgical area and integrate multiple imaging modes, such as endoscopic and ultrasound images, assisting doctors in precise positioning and operations during surgeries. Moreover, the low latency characteristic of LCD screens ensures the smooth display of real-time images, reducing surgical risks.
The application of LCD screens in teleconsultations and medical education is also increasingly widespread. Through high-definition LCD screens, doctors can remotely view patients' medical images, engage in real-time discussions with other experts, and improve diagnostic and treatment efficiency. In medical education, LCD screens can be used to display anatomical images and surgical videos, helping students to understand complex medical knowledge more intuitively.

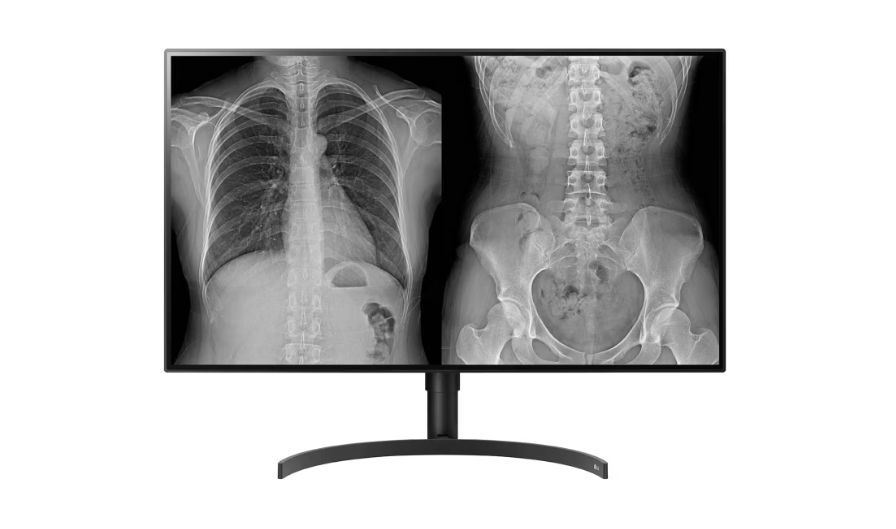

Example of 21.3-inch LCD Screen Application in Diagnostic Displays:
The high resolution, low power consumption, long lifespan, and adjustable brightness of LCD screens make them ideal for use in medical diagnostic displays. These screens not only enhance the accuracy of doctors' diagnoses but also significantly improve the overall performance and reliability of medical equipment. With ongoing technological advancements, the application of LCD screens in the medical field will continue to expand, providing more precise and efficient diagnostic tools for doctors and patients, ultimately improving the quality of medical services.
Model Name | MC20A/MG20A, MC30A/MG30A, MC50A/MG50A |
Resolution | 1600 x1200(2M), 2048 x 1536(3M), 2560*2048(5M) |
Pixel Pitch | 0.2702(2M), 0.2115(3M), 0.165(5M)mm |
Size | 21.3Inch |
Aspect Ratio | 4:3 |
White Luminance | 1000(color), 2000(gray) cd/m² |
Preset Brightness | Dicom 500 (default), L max = 500±10 cd/m²(white Picture) |
Contrast Ratio | 2M: 1500:1, 3M: 1800:1, 5M: 2000:1 (typ.) |
Color depth | true 10 bit |
Viewing Angle | R/L 178 degree (Typ.), U/D 178 degree (Typ.) |
Backlight | LED with PWM dimming |
Brightness uniformity | δW = 1.25 Typ. |
Signal Interface | Dual link DVI x 1 |
HDMI2.0 x 1 | |
DP1.2 x 1 |
Specifications of the 21.3-inch LCD Display as Shown in the Above Image
With the continuous advancement of technology, the application prospects of LCD screens in the medical field will become broader. In the future, the resolution and color performance of LCD screens will further improve, providing clearer and more delicate medical images. Additionally, LCD screens integrated with artificial intelligence technology will be able to achieve automated image analysis and diagnosis, enhancing the efficiency and accuracy of medical diagnostics. Moreover, new technologies such as flexible LCD screens and transparent LCD screens will gradually be applied in the medical field, offering more innovative solutions. For example, flexible LCD screens can be used in wearable medical devices, providing convenient display interfaces for real-time monitoring; transparent LCD screens can be used in operating room windows, achieving unobstructed image observation.
Our company specializes in providing high-quality LCD screens and electronic components, aiming to meet the needs of various medical devices. Our LCD screens have been widely used in major medical institutions. We are committed to offering comprehensive technical support and solutions to enhance medical service quality and patient experience. We welcome major medical institutions to contact us to discuss cooperation opportunities. We recommend our existing products and look forward to collaborating with you.
